Description
Ceratizit Article Number: 6284825400
Ceratizit Material Number: 12545955
Ceratizit Komet Number (Unpacked): M31 01122
Ceratizit Komet Number (Packed): M3101122
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

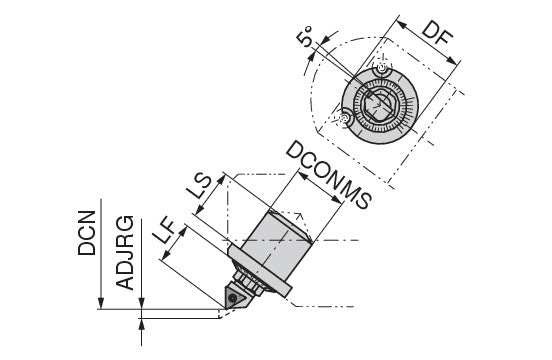

| Properties | ||
|---|---|---|

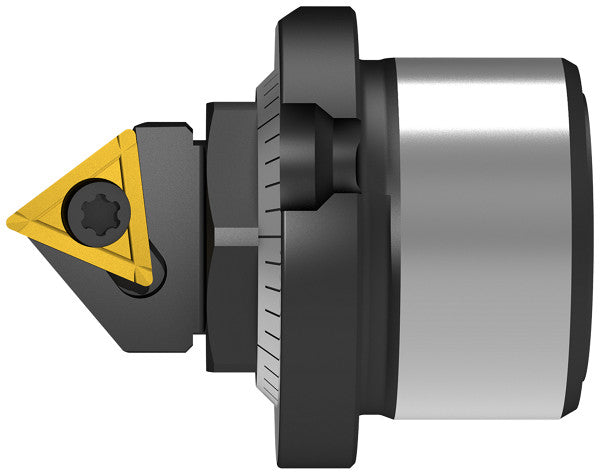

| Name | Ceratizit CARTRIDGE CoreLine - Precision Turning Insert | |
| EDP # | 0756541 | |
| Weight (1 pc.) | 1.0 oz | 34.0 g |
| Productsystem | M31 | |
| Functional length / LF | 0.4370" | 11.100 mm |
| Mounting spigot diameter / DCONMS H6 | 0.5906" | 15.000 mm |
| Insert | TP.. 0601.. | |
| Shank length / LS | 0.3622" | 9.200 mm |
| Flange diameter / DF | 0.7480" | 19.000 mm |
| Cutting diameter minimum / DCN | 1.0000" | 25.400 mm |
| Adjustment range / ADJRG | 0.0315" | 0.800 mm |
| torque moment | 0.62 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
