Description
Ceratizit Article Number: 5089916000
Ceratizit Material Number: 12546082
Ceratizit Komet Number (Unpacked): Q12 32000.428425
Ceratizit Komet Number (Packed): Q1232000428425
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

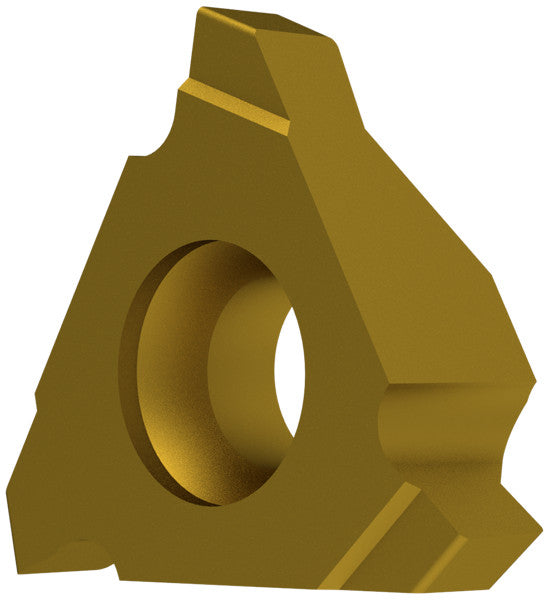

| Name | Ceratizit INSERT TNAX1604ZZR-315FBK8425 CoreLine Milling Inserts For circlip Grooves With Chamfer 5089916000 | |
| EDP # | 0756549 | |
| Weight (1 pc.) | 0.2 oz | 7.0 g |
| Machining process - Main Application | Circlip grooves | |

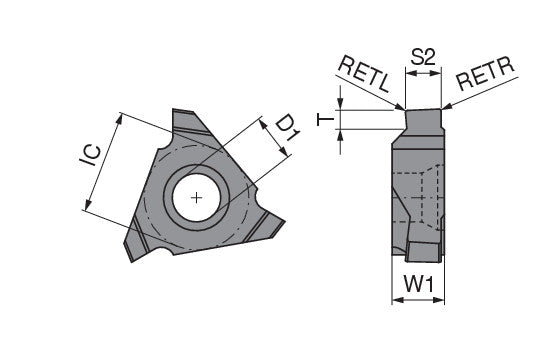

| S2 - CIRCLIP H13 | 0.1240" | 3.150 mm |
| Flank radius right hand / RETR | 0.0079" | 0.200 mm |
| S1 - CIRCLIP | 0.1181" | 3.000 mm |
| T | 0.0689" | 1.750 mm |
| Flank radius left hand / RETL | 0.0079" | 0.200 mm |
| Insert width / W1 | 0.1874" | 4.760 mm |
| Coating name / Grade (Ceratizit) / COATN | BK8425 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
