Description
Ceratizit Article Number: 5115150803
Ceratizit Material Number: 12546151
Ceratizit Komet Number (Unpacked): Q36 38000.078425
Ceratizit Komet Number (Packed): Q3638000078425
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

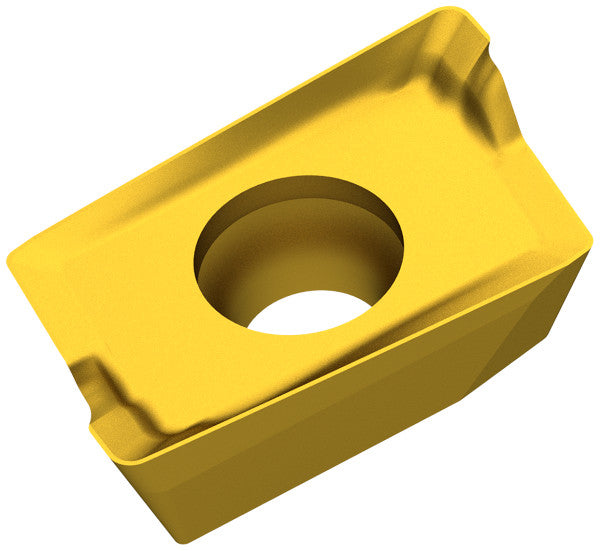

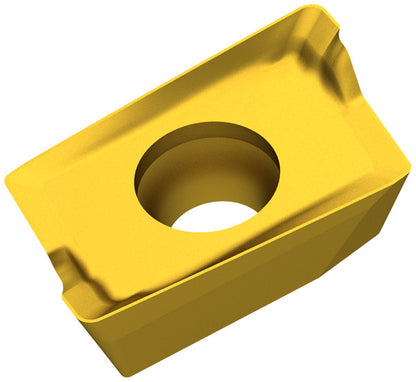

| Name | Ceratizit APKT 1605PD-RM BK8425 CoreLine Carbide Milling indexable Insert 5115150803 | |
| EDP # | 0756551 | |
| Weight (1 pc.) | 0.3 oz | 8.0 g |
| designation | 1605PDSR | |

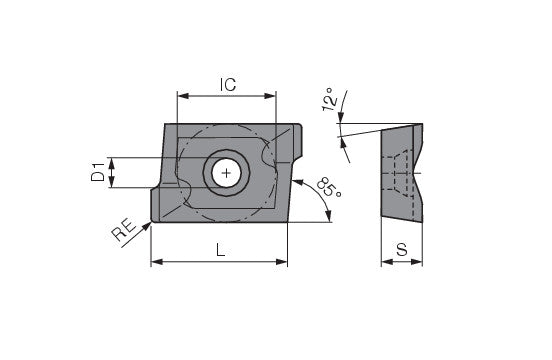

| Corner radius / RE | 0.0315" | 0.800 mm |
| Inscribed circle diameter / IC | 0.4370" | 11.100 mm |
| Fixing hole diameter / D1 | 0.1772" | 4.500 mm |
| Cutting edge length / L | 0.5906" | 15.000 mm |
| Insert thickness / S | 0.2071" | 5.260 mm |
| Clearance angle major / AN | 12 ° | |
| Coating name / Grade (Ceratizit) / COATN | BK8425 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
