Description
Ceratizit Article Number: 5115270803
Ceratizit Material Number: 12546160
Ceratizit Komet Number (Unpacked): Q80 32000.012715
Ceratizit Komet Number (Packed): Q8032000012715
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

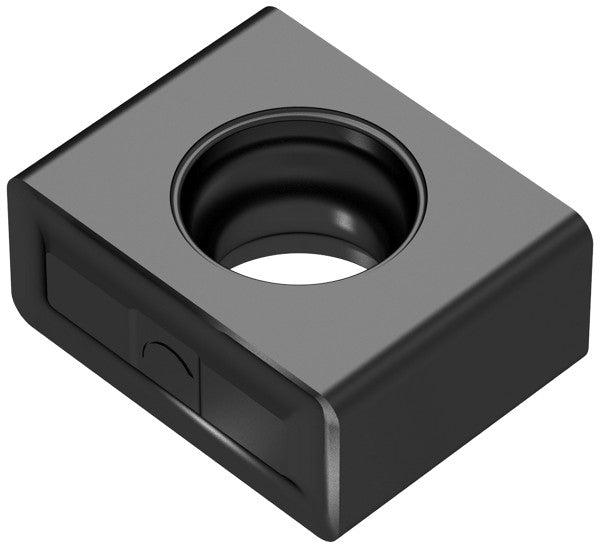

| Name | Ceratizit LNGU 120508EN-05 BK2715 5115270803 | |
| EDP # | 0756557 | |
| Weight (1 pc.) | 0.3 oz | 8.0 g |
| designation | 120508EN | |

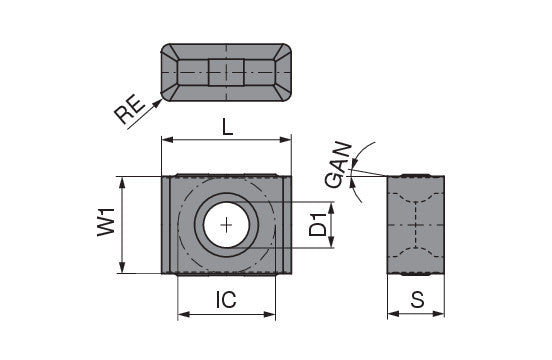

| Corner radius / RE | 0.0315" | 0.800 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| Fixing hole diameter / D1 | 0.1772" | 4.500 mm |
| Cutting edge length / L | 0.5000" | 12.700 mm |
| Insert thickness / S | 0.2189" | 5.560 mm |
| Insert width / W1 | 0.3748" | 9.520 mm |
| Clearance angle major / AN | 0 ° | |
| Coating name / Grade (Ceratizit) / COATN | BK2715 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
