Description
Ceratizit Article Number: 1087928513
Ceratizit Material Number: 12546200
Ceratizit Komet Number (Unpacked): U10 22850
Ceratizit Komet Number (Packed): U1022850
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB QUATRON W8332/28,5/58 32X60 R Indexable Drill 1087928513 | |
| EDP # | 0756586 | |
| Workpiece Material(s) | HiTemp Alloy (Orange) Stainless Steel (Yellow) Hard/Tool Steel (Grey) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Composites (Black) Aluminum (Green) Steel (Blue) All Materials (White) | |
| Weight (1 pc.) | 22.0 oz | 620 g |
| Product-Carbon-Footprint | B | |

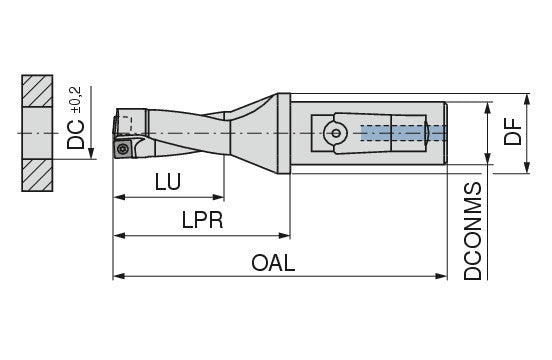

| Cutting diameter / DC | 1.1220" | 28.500 mm |
| Mounting spigot diameter / DCONMS | 1.2598" | 32.000 mm |
| Flange diameter / DF | 1.5354" | 39.000 mm |
| Overall length / OAL | 5.5906" | 142.000 mm |
| Protruding length / LPR | 3.2283" | 82.000 mm |
| Usable length / LU | 2.2835" | 58.000 mm |
| Insert | SOEX 090408 | |
| torque moment | 2.25 Nm | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
