Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 1088024095
Ceratizit Material Number: 12546338
Ceratizit Komet Number (Unpacked): U11 52400
Ceratizit Komet Number (Packed): U1152400
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Quatron ABS50/W8323/24/72/R; KOMET - Indexable Insert Drill 1088024095 | |
| EDP # | 0756702 | |
| Workpiece Material(s) | Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 23.0 oz | 639 g |

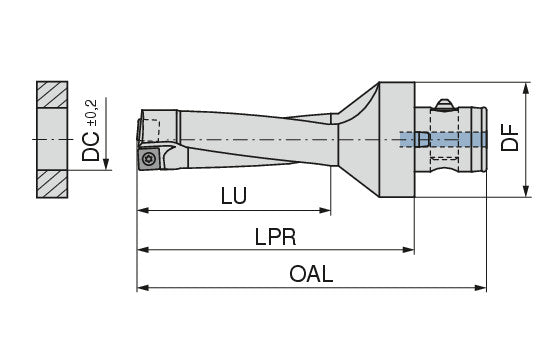

| Cutting diameter / DC | 0.9449" | 24.000 mm |
| Mounting spigot diameter / DCONMS | 1.1024" | 28.000 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
| Overall length / OAL | 5.4331" | 138.000 mm |
| Protruding length / LPR | 4.2126" | 107.000 mm |
| Usable length / LU | 2.8346" | 72.000 mm |
| Insert | SOEX 07T308 | |
| torque moment | 1.01 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
