Description
Ceratizit Article Number: 1088043014
Ceratizit Material Number: 12546439
Ceratizit Komet Number (Unpacked): U11 94300
Ceratizit Komet Number (Packed): U1194300
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB QUATRON 40X68/W8344/43/129/R KOMET Quatron - Indexable Insert Drill 1088043014 | |
| EDP # | 0756787 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Cast Iron (Red) Composites (Black) Hard/Tool Steel (Grey) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 229.0 oz | 6485 g |

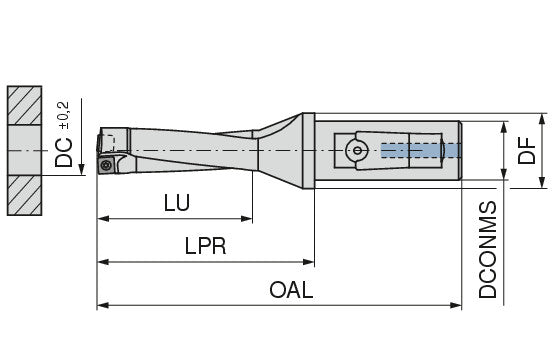

| Cutting diameter / DC | 1.6929" | 43.000 mm |
| Mounting spigot diameter / DCONMS | 1.5748" | 40.000 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
| Overall length / OAL | 9.2913" | 236.000 mm |
| Protruding length / LPR | 6.6142" | 168.000 mm |
| Usable length / LU | 5.0787" | 129.000 mm |
| Insert | SOEX 120508 | |
| torque moment | 6.25 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
