Ceratizit KUB Quatron ABS80/W8332/65/195/R; Indexable Drill 1088065098 (0756809) [SKU:1088065098]
Ceratizit KUB Quatron ABS80/W8332/65/195/R; Indexable Drill 1088065098 (0756809) [SKU:1088065098]
Couldn't load pickup availability
Ceratizit Article Number: 1088065098
Ceratizit Material Number: 12546469
Ceratizit Komet Number (Unpacked): U12 46500
Ceratizit Komet Number (Packed): U1246500
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Quatron ABS80/W8332/65/195/R; Indexable Drill 1088065098 | |
| EDP # | 0756809 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) Hard/Tool Steel (Grey) Cast Iron (Red) Stainless Steel (Yellow) Steel (Blue) All Materials (White) | |
| Weight (1 pc.) | 155.0 oz | 4396 g |
| Product-Carbon-Footprint | B | |

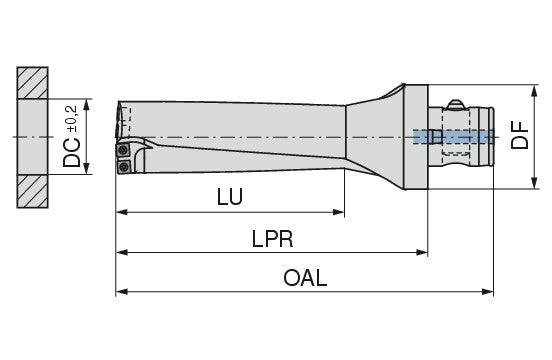

| Cutting diameter / DC | 2.5591" | 65.000 mm |
| Mounting spigot diameter / DCONMS | 1.8110" | 46.000 mm |
| Flange diameter / DF | 3.1496" | 80.000 mm |
| Overall length / OAL | 11.5354" | 293.000 mm |
| Protruding length / LPR | 9.8425" | 250.000 mm |
| Usable length / LU | 7.6772" | 195.000 mm |
| Insert | SOEX 090408 | |
| torque moment | 2.25 Nm | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
