Description
Ceratizit Article Number: 1089255098
Ceratizit Material Number: 12547152
Ceratizit Komet Number (Unpacked): V14 35500
Ceratizit Komet Number (Packed): V1435500
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

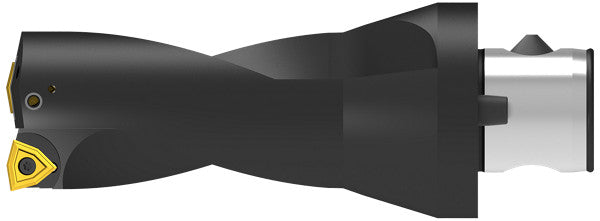

| Name | Ceratizit KUB Drill ABS80KUB2/55/110R53; KOMET Trigon - Indexable Insert Drill 1089255098 | |
| EDP # | 0757055 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Hard/Tool Steel (Grey) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) Composites (Black) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 110.0 oz | 3129 g |
| Product-Carbon-Footprint | B | |
| Cutting diameter / DC | 2.1654" | 55.000 mm |
| Mounting spigot diameter / DCONMS | 1.8110" | 46.000 mm |
| Flange diameter / DF | 3.1496" | 80.000 mm |
| Overall length / OAL | 8.1890" | 208.000 mm |
| Protruding length / LPR | 6.4961" | 165.000 mm |
| Usable length / LU | 4.3307" | 110.000 mm |
| Insert | WOEX 100504 | |
| torque moment | 4.3 Nm | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
