Description
Ceratizit Article Number: 1086121000
Ceratizit Material Number: 12547730
Ceratizit Komet Number (Unpacked): V46 22100
Ceratizit Komet Number (Packed): V4622100
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

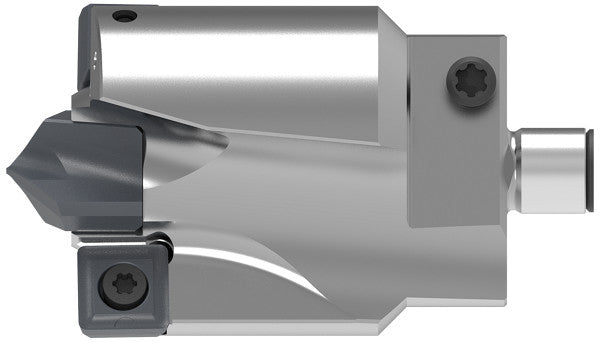

| Name | Ceratizit DRILL HEAD 21 mm DIA. CoreLine - Indexable Insert Bit - Centron Powerline 1086121000 | |
| EDP # | 0757127 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 2.0 oz | 61.7 g |
| Product-Carbon-Footprint | B | |
| Productsystem | Centron Powerline | |
| Machining process - Main Application | Solid drilling | |
| Cutting diameter / DC | 0.8268" | 21.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.4055" | 10.300 mm |
| Step distance / SD | 0.1551" | 3.940 mm |
| Protruding length / LPR | 0.9055" | 23.000 mm |
| Neck diameter (BD) / BD | 0.7874" | 20.000 mm |
| Mounting spigot diameter / DCONMS | 0.7480" | 19.000 mm |
| Coupling Size | 19.0000" | 482.600 mm |
| torque moment | 1.01 Nm | |
| Insert | SOEX 060308 | |
| Cutting edge count / CEDC | 2.0000" | 50.800 mm |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
