Description
Ceratizit Article Number: 1086131000
Ceratizit Material Number: 12547742
Ceratizit Komet Number (Unpacked): V46 23100
Ceratizit Komet Number (Packed): V4623100
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

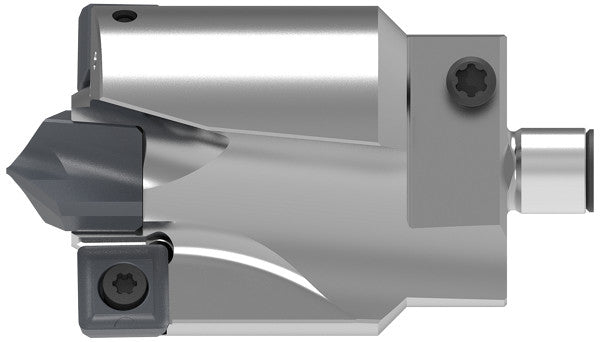

| Name | Ceratizit DRILL HEAD 31 MM DIA. KOMET KUB Centron - Powerline Drill Bit 1086131000 | |
| EDP # | 0757136 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 4.0 oz | 108 g |

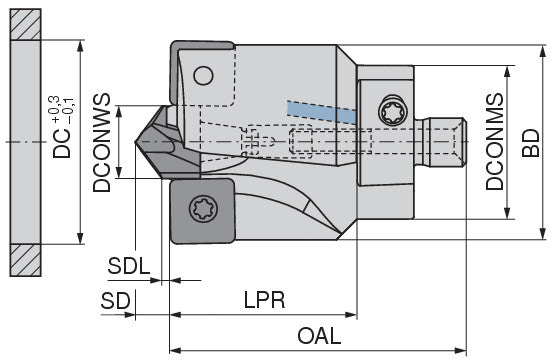

| Cutting diameter / DC | 1.2205" | 31.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.5630" | 14.300 mm |
| Step distance / SD | 0.2039" | 5.180 mm |
| Protruding length / LPR | 0.9055" | 23.000 mm |
| Neck diameter (BD) / BD | 1.1811" | 30.000 mm |
| Mounting spigot diameter / DCONMS | 0.9843" | 25.000 mm |
| Coupling Size | 25 | |
| torque moment | 2.8 Nm | |
| Insert | SOEX 090408 | |
| Cutting edge count / CEDC | 2 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
