Description
Ceratizit Article Number: 1086139200
Ceratizit Material Number: 12547752
Ceratizit Komet Number (Unpacked): V46 23920
Ceratizit Komet Number (Packed): V4623920
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

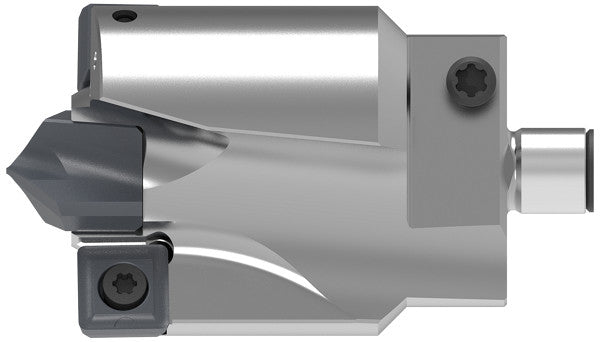

| Name | Ceratizit DRILL HEAD 39,2 mm DIA. CoreLine - Indexable Insert Bit - Centron Powerline 1086139200 | |
| EDP # | 0757145 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Cast Iron (Red) Aluminum (Green) Hard/Tool Steel (Grey) Composites (Black) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 5.0 oz | 140 g |
| Product-Carbon-Footprint | B | |
| Productsystem | Centron Powerline | |
| Machining process - Main Application | Solid drilling | |

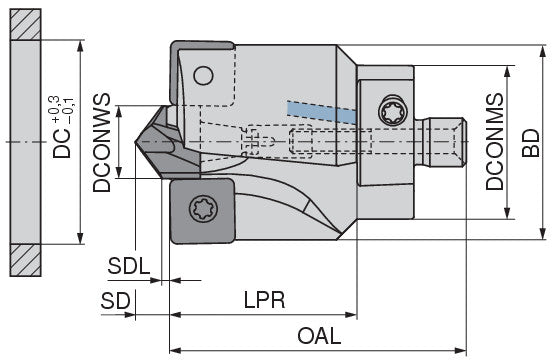

| Cutting diameter / DC | 1.5433" | 39.200 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.6417" | 16.300 mm |
| Step distance / SD | 0.2386" | 6.060 mm |
| Protruding length / LPR | 0.9055" | 23.000 mm |
| Neck diameter (BD) / BD | 1.5039" | 38.200 mm |
| Mounting spigot diameter / DCONMS | 1.2598" | 32.000 mm |
| Coupling Size | 32.0000" | 812.800 mm |
| torque moment | 6.25 Nm | |
| Insert | SOEX 120508 | |
| Cutting edge count / CEDC | 2.0000" | 50.800 mm |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
