Description
Ceratizit Article Number: 1085815099
Ceratizit Material Number: 12547790
Ceratizit Komet Number (Unpacked): V46 41451
Ceratizit Komet Number (Packed): V4641451
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

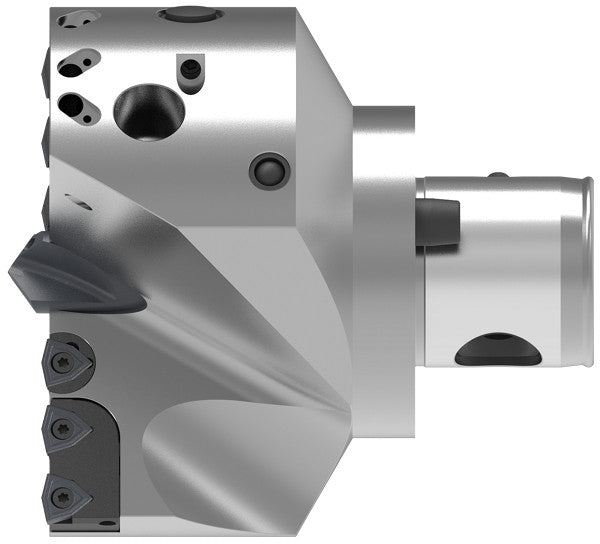

| Name | Ceratizit DRILL HEAD ABS-T80 145-150 MM DIA. KUB V464 Drill Bit 1085815099 | |
| EDP # | 0757157 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 197.0 oz | 5590 g |

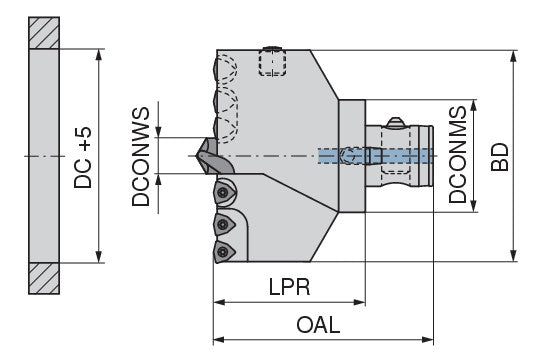

| Cutting diameter / DC | 5.7087" | 145.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.7874" | 20.000 mm |
| Step distance / SD | 0.3114" | 7.910 mm |
| Step diameter length / SDL | 0.0984" | 2.500 mm |
| Protruding length / LPR | 3.5433" | 90.000 mm |
| Overall length / OAL | 5.2362" | 133.000 mm |
| Neck diameter (BD) / BD | 5.6102" | 142.500 mm |
| Flange diameter / DF | 3.1496" | 80.000 mm |
| Mounting spigot diameter / DCONMS | 1.8110" | 46.000 mm |
| torque moment | 6.25 Nm | |
| Insert | WOEX 0804.. | |
| Cutting edge count / CEDC | 6 | |
| Shank length / LS | 1.6929" | 43.000 mm |
| Machine interface size | ABS 80 T | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
