Description
Ceratizit Article Number: 1086026000
Ceratizit Material Number: 12547794
Ceratizit Komet Number (Unpacked): V46 50260
Ceratizit Komet Number (Packed): V4650260
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit DRILL HEAD KUB CENTRON 26 mm DIA. CoreLine - Ø 20-64 - 1086026000 | |
| EDP # | 0757160 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) Composites (Black) Hard/Tool Steel (Grey) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 3.0 oz | 72.0 g |
| Product-Carbon-Footprint | B | |
| Productsystem | Centron | |
| Machining process - Main Application | Drilling on uneven surfaces | |

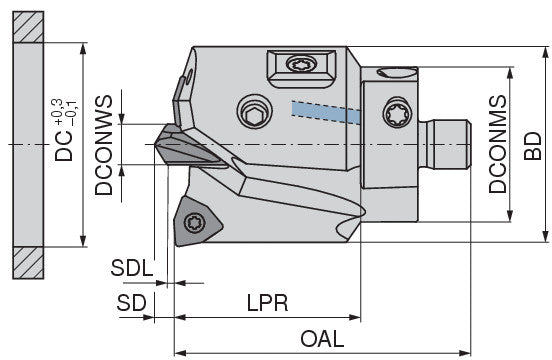

| Cutting diameter / DC | 1.0236" | 26.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.2362" | 6.000 mm |
| Step distance / SD | 0.1043" | 2.650 mm |
| Step diameter length / SDL | 0.0433" | 1.100 mm |
| Protruding length / LPR | 0.9055" | 23.000 mm |
| Overall length / OAL | 1.4961" | 38.000 mm |
| Neck diameter (BD) / BD | 0.9843" | 25.000 mm |
| Mounting spigot diameter / DCONMS | 0.9843" | 25.000 mm |
| Coupling Size | 25.0000" | 635.000 mm |
| torque moment | 1.01 Nm | |
| Insert | WOEX 040304 | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
