Description
Ceratizit Article Number: 1086034000
Ceratizit Material Number: 12547802
Ceratizit Komet Number (Unpacked): V46 50340
Ceratizit Komet Number (Packed): V4650340
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

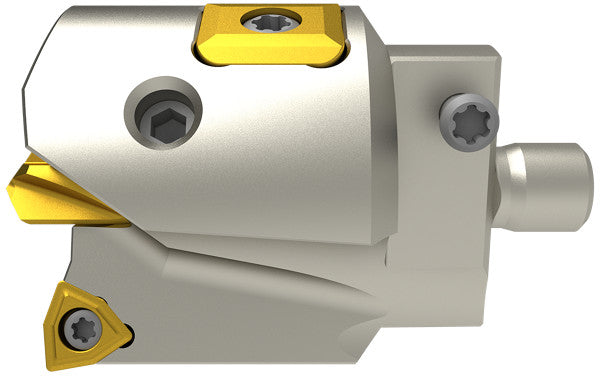

| Name | Ceratizit DRILL HEAD KUB CENTRON 34 MM DIA. KOMET Centron - Drill Head Ø 20-64 Mm 1086034000 | |
| EDP # | 0757168 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Aluminum (Green) Aluminum (Green) Composites (Black) Composites (Black) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 6.0 oz | 180 g |
| Product-Carbon-Footprint | B | |

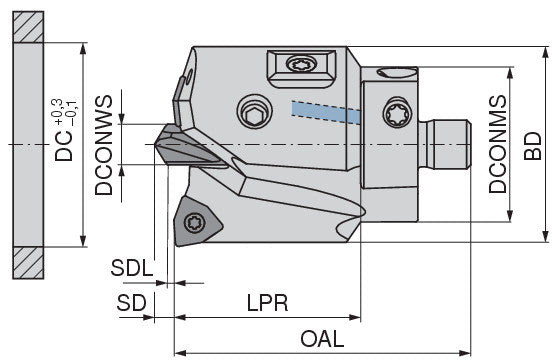

| Cutting diameter / DC | 1.3386" | 34.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.2362" | 6.000 mm |
| Step distance / SD | 0.1043" | 2.650 mm |
| Step diameter length / SDL | 0.0433" | 1.100 mm |
| Protruding length / LPR | 0.9055" | 23.000 mm |
| Overall length / OAL | 1.5433" | 39.200 mm |
| Neck diameter (BD) / BD | 1.2992" | 33.000 mm |
| Mounting spigot diameter / DCONMS | 1.2598" | 32.000 mm |
| Coupling Size | 32 | |
| torque moment | 1.28 Nm | |
| Insert | WOEX 05T304 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
