Description
Ceratizit Article Number: 1086040000
Ceratizit Material Number: 12547807
Ceratizit Komet Number (Unpacked): V46 50400
Ceratizit Komet Number (Packed): V4650400
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit DRILL HEAD KUB CENTRON 40 mm DIA. CoreLine - Ø 20-64 - 1086040000 | |
| EDP # | 0757173 | |
| Workpiece Material(s) | Cast Iron (Red) Stainless Steel (Yellow) Steel (Blue) HiTemp Alloy (Orange) Cast Iron (Red) Aluminum (Green) Composites (Black) Hard/Tool Steel (Grey) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 6.0 oz | 168 g |
| Product-Carbon-Footprint | B | |
| Productsystem | Centron | |
| Machining process - Main Application | Drilling on uneven surfaces | |

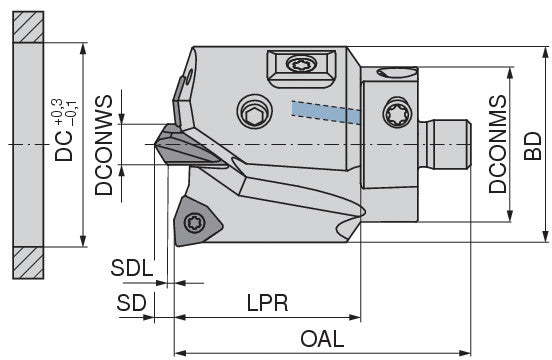

| Cutting diameter / DC | 1.5748" | 40.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.3150" | 8.000 mm |
| Step distance / SD | 0.1331" | 3.380 mm |
| Step diameter length / SDL | 0.0492" | 1.250 mm |
| Protruding length / LPR | 0.9843" | 25.000 mm |
| Overall length / OAL | 1.6969" | 43.100 mm |
| Neck diameter (BD) / BD | 1.5157" | 38.500 mm |
| Mounting spigot diameter / DCONMS | 1.5157" | 38.500 mm |
| Coupling Size | 38,5 | |
| torque moment | 1.28 Nm | |
| Insert | WOEX 05T304 | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
