Description
Ceratizit Article Number: 1086632095
Ceratizit Material Number: 12547854
Ceratizit Komet Number (Unpacked): V47 40331
Ceratizit Komet Number (Packed): V4740331
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit BASIC ELEMENT KUB CENTRON Ø33-39 5-6,5XD CoreLine Indexable Drill 1086632095 | |
| EDP # | 0757226 | |
| Weight (1 pc.) | 46.0 oz | 1295 g |
| Product-Carbon-Footprint | B | |
| Productsystem | Centron | |
| Machining process - Main Application | Drilling on uneven surfaces | |

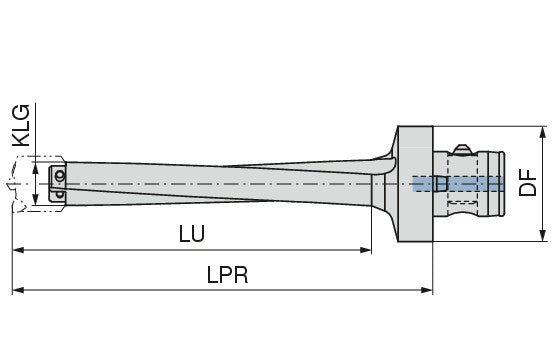

| Coupling Size | 32.0000" | 812.800 mm |
| Usable length / LU | 8.4646" | 215.000 mm |
| Protruding length / LPR | 10.0394" | 255.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.2598" | 32.000 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
| Mounting spigot diameter / DCONMS | 1.1024" | 28.000 mm |
| nominal size / SZID | ABS 50 | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
