Description
Ceratizit Article Number: 1086638596
Ceratizit Material Number: 12547855
Ceratizit Komet Number (Unpacked): V47 40401
Ceratizit Komet Number (Packed): V4740401
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit BASIC ELEMENT KUB CENTRON Ø40-45 5-6,5XD KOMET Centron Basic Element 1086638596 | |
| EDP # | 0757227 | |
| Weight (1 pc.) | 78.0 oz | 2204 g |
| Product-Carbon-Footprint | B | |
| Coupling Size | 38,5 | |

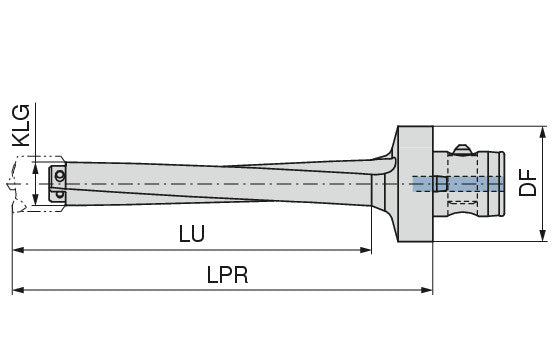

| Usable length / LU | 10.2362" | 260.000 mm |
| Protruding length / LPR | 12.2047" | 310.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.5157" | 38.500 mm |
| Flange diameter / DF | 2.4803" | 63.000 mm |
| Mounting spigot diameter / DCONMS | 1.3386" | 34.000 mm |
| nominal size / SZID | ABS 63 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
