Description
Ceratizit Article Number: 1086670591
Ceratizit Material Number: 12547859
Ceratizit Komet Number (Unpacked): V47 40721
Ceratizit Komet Number (Packed): V4740721
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit BASIC ELEMENT KUB CENTRON Ø72-81 6XD CoreLine Indexable Drill 1086670591 | |
| EDP # | 0757231 | |
| Weight (1 pc.) | 407.0 oz | 11528 g |
| Product-Carbon-Footprint | B | |
| Productsystem | Centron | |
| Machining process - Main Application | Drilling on uneven surfaces | |
| Coupling Size | 70,5 | |

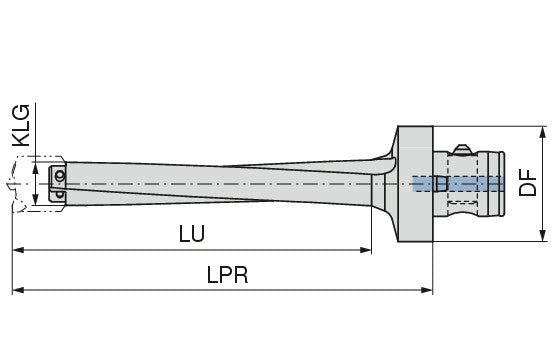

| Usable length / LU | 18.1102" | 460.000 mm |
| Protruding length / LPR | 21.2598" | 540.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 2.7756" | 70.500 mm |
| Flange diameter / DF | 3.9370" | 100.000 mm |
| Mounting spigot diameter / DCONMS | 2.2047" | 56.000 mm |
| nominal size / SZID | ABS 100 | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
