Description
Ceratizit Article Number: 1085908800
Ceratizit Material Number: 12547868
Ceratizit Komet Number (Unpacked): V50 30880
Ceratizit Komet Number (Packed): V5030880
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

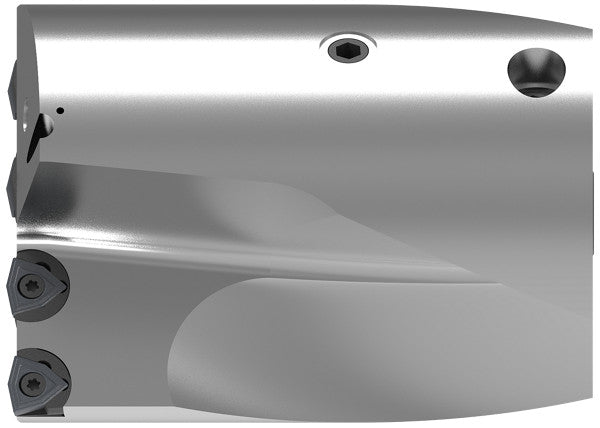

| Name | Ceratizit Drill Head 88 Mm KUB-BK4/01/88R-38; V50 Drill Bit 1085908800 | |
| EDP # | 0757240 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 100.0 oz | 2838 g |

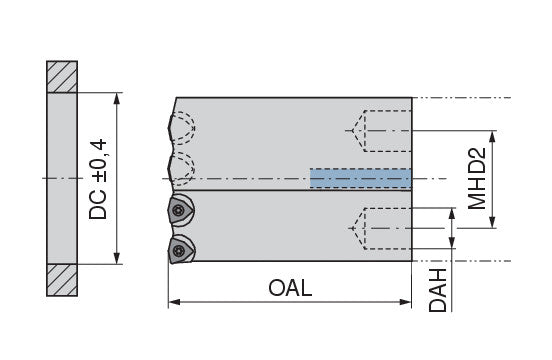

| Cutting diameter / DC | 3.4646" | 88.000 mm |
| Overall length / OAL | 4.7244" | 120.000 mm |
| torque moment | 2.8 Nm | |
| Insert | WOEX 06T3.. | |
| Mounting hole distance 2 / MHD2 | 1.8898" | 48.000 mm |
| Cutting edge count / CEDC | 4 | |
| nominal size / SZID | V50-48 | |
| Diameter access hole / DAH | 0.7874" | 20.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
