Description
Ceratizit Article Number: 1085910300
Ceratizit Material Number: 12547871
Ceratizit Komet Number (Unpacked): V50 31030
Ceratizit Komet Number (Packed): V5031030
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

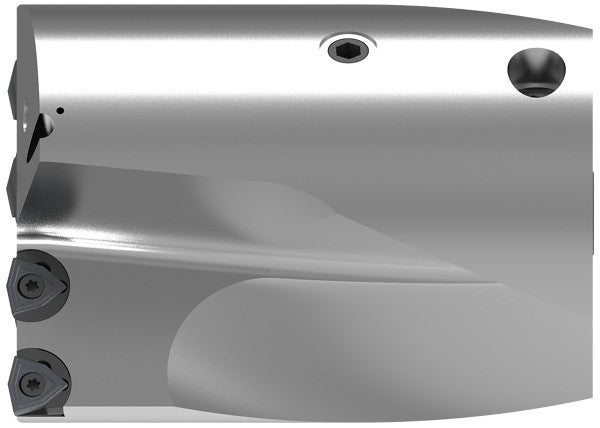

| Name | Ceratizit Drill Head 103 mm KUB-BK4/1/103R-48; Pentron Indexable Insert Bit V50 1085910300 | |
| EDP # | 0757243 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Cast Iron (Red) Hard/Tool Steel (Grey) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 135.0 oz | 3815 g |
| Product-Carbon-Footprint | B | |
| Productsystem | V50 | |
| Machining process - Main Application | Solid drilling | |

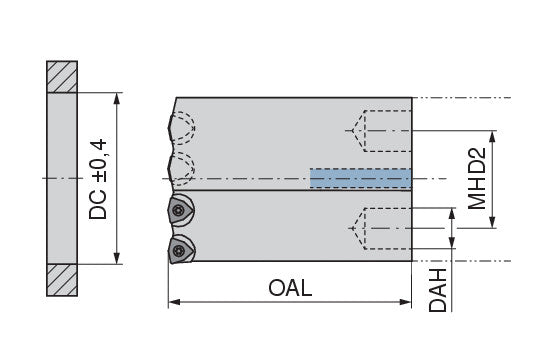

| Cutting diameter / DC | 4.0551" | 103.000 mm |
| Overall length / OAL | 4.7244" | 120.000 mm |
| torque moment | 6.25 Nm | |
| Insert | WOEX 0804.. | |
| Mounting hole distance 2 / MHD2 | 2.0472" | 52.000 mm |
| Cutting edge count / CEDC | 4.0000" | 101.600 mm |
| nominal size / SZID | V50-52 | |
| Diameter access hole / DAH | 0.9449" | 24.000 mm |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
