Description
Ceratizit Article Number: 1085911800
Ceratizit Material Number: 12547874
Ceratizit Komet Number (Unpacked): V50 31180
Ceratizit Komet Number (Packed): V5031180
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

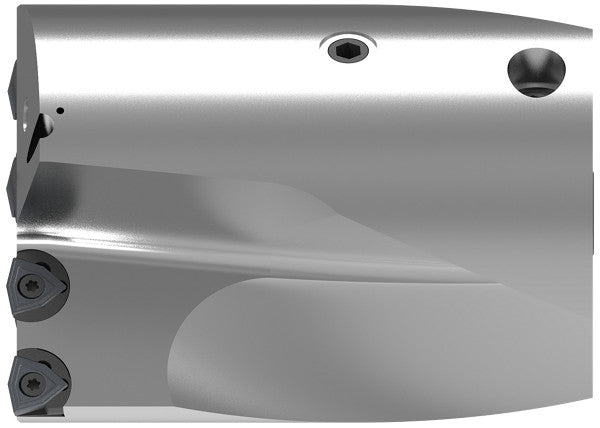

| Name | Ceratizit DRILL HEAD 118MM DIA KUB-BK4/2/118/R53 Pentron Indexable Insert Bit V50 1085911800 | |
| EDP # | 0757246 | |
| Workpiece Material(s) | Cast Iron (Red) Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Hard/Tool Steel (Grey) All Materials (White) | |
| Weight (1 pc.) | 172.0 oz | 4870 g |
| Product-Carbon-Footprint | B | |
| Productsystem | V50 | |
| Machining process - Main Application | Solid drilling | |

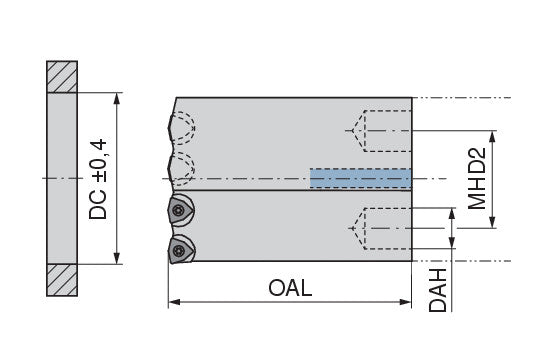

| Cutting diameter / DC | 4.6457" | 118.000 mm |
| Overall length / OAL | 4.7244" | 120.000 mm |
| torque moment | 6.25 Nm | |
| Insert | WOEX 1005.. | |
| Mounting hole distance 2 / MHD2 | 2.5197" | 64.000 mm |
| Cutting edge count / CEDC | 4.0000" | 101.600 mm |
| nominal size / SZID | V50-64 | |
| Diameter access hole / DAH | 1.1024" | 28.000 mm |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
