Description
Ceratizit Article Number: 1085755096
Ceratizit Material Number: 12547916
Ceratizit Komet Number (Unpacked): V83 75400
Ceratizit Komet Number (Packed): V8375400
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB DRILL ABS63/53,5-55 CoreLine Adjustable indexable Trigon 1085755096 | |
| EDP # | 0757260 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) Cast Iron (Red) HiTemp Alloy (Orange) Composites (Black) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 96.0 oz | 2726 g |
| Product-Carbon-Footprint | B | |
| Productsystem | Trigon | |
| Machining process - Main Application | Solid drilling | |

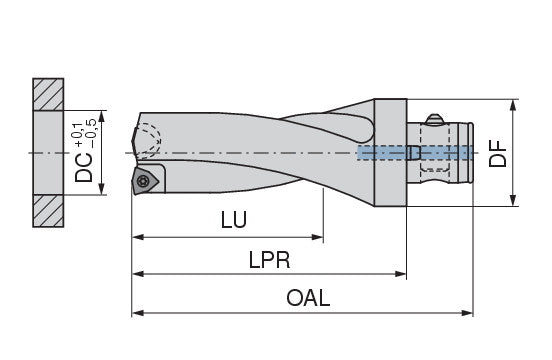

| Cutting edge Ø - range / DC | 53.5 - 55 | |
| Mounting spigot diameter / DCONMS | 1.3386" | 34.000 mm |
| Flange diameter / DF | 2.4803" | 63.000 mm |
| Overall length / OAL | 10.0394" | 255.000 mm |
| Protruding length / LPR | 8.5433" | 217.000 mm |
| Usable length / LU | 6.3780" | 162.000 mm |
| Insert | WOEX 080404 | |
| torque moment | 6.25 Nm | |
| Machine interface size | ABS 63 | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
