Description
Ceratizit Article Number: 1086831400
Ceratizit Material Number: 12547961
Ceratizit Komet Number (Unpacked): V96 01140.8450
Ceratizit Komet Number (Packed): V96011408450
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

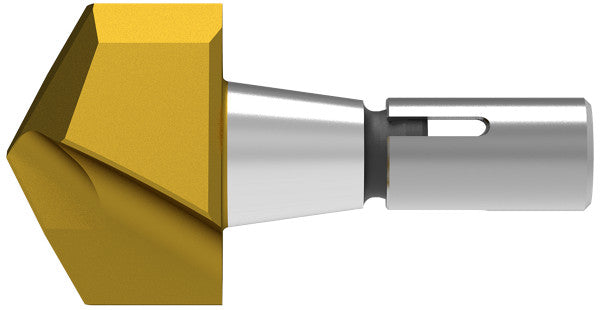

| Name | Ceratizit CENTER DRILL 14.3 Ø, BK8450 CoreLine - Carbide Centering Tip - Centron Powerline 1086831400 | |
| EDP # | 0757307 | |
| Weight (1 pc.) | 1.0 oz | 18.0 g |
| Productsystem | Centron Powerline | |
| Cutting diameter / DC | 0.5630" | 14.300 mm |
| Overall length / OAL | 1.0240" | 26.010 mm |
| Point length / PL | 0.1457" | 3.700 mm |
| SIG / SIG | 120 ° | |
| Coating name / Grade (Ceratizit) / COATN | BK8450 | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
