Description
Ceratizit Article Number: 6260000300
Ceratizit Material Number: 12547967
Ceratizit Komet Number (Unpacked): W00 04120.028440
Ceratizit Komet Number (Packed): W0004120028440
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

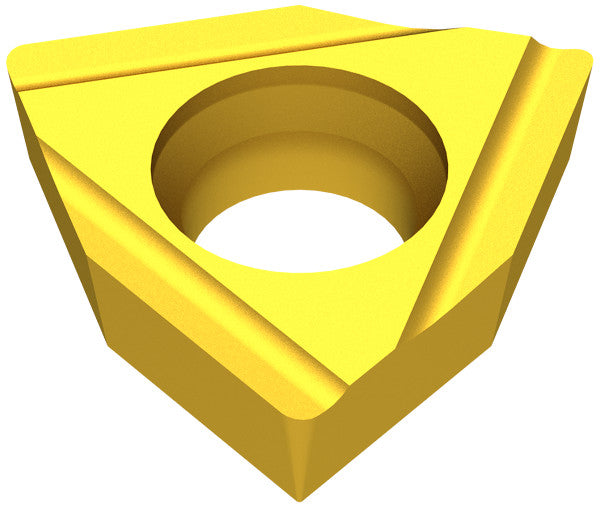

| Name | Ceratizit WOHX 02T002EL-G12 BK8440 CoreLine HM indexable Insert 6260000300 | |
| EDP # | 0757312 | |
| Weight (1 pc.) | 0.1 oz | 2.3 g |
| designation | 02T002EL | |
| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.1024" | 2.600 mm |
| Insert thickness / S | 0.0472" | 1.200 mm |
| Fixing hole diameter / D1 | 0.0787" | 2.000 mm |
| Inscribed circle diameter / IC | 0.1575" | 4.000 mm |
| Size | 2.0000" | 50.800 mm |
| Designation | WOHX 02T002EL | |
| Chip breaker (Ceratizit) / CBMD | -G12 | |
| Coating name / Grade (Ceratizit) / COATN | BK8440 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
