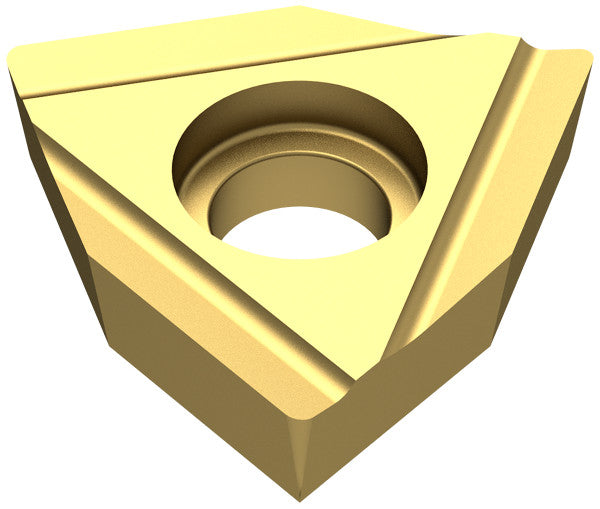

Ceratizit WOHX 03T102EL-G12 BK6425 CoreLine HM indexable Insert 6260010802 (0757316)
Ceratizit WOHX 03T102EL-G12 BK6425 CoreLine HM indexable Insert 6260010802 (0757316)
Couldn't load pickup availability
Ceratizit Article Number: 6260010802
Ceratizit Material Number: 12547975
Ceratizit Komet Number (Unpacked): W00 10120.026425
Ceratizit Komet Number (Packed): W0010120026425
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit WOHX 03T102EL-G12 BK6425 CoreLine HM indexable Insert 6260010802 | |
| EDP # | 0757316 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |

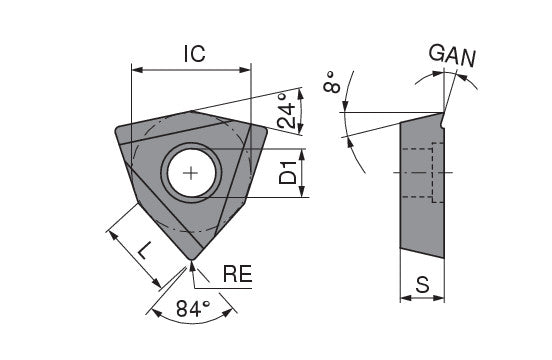

| designation | 03T102EL | |
| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.1291" | 3.280 mm |
| Insert thickness / S | 0.0787" | 2.000 mm |
| Fixing hole diameter / D1 | 0.0866" | 2.200 mm |
| Inscribed circle diameter / IC | 0.1969" | 5.000 mm |
| Size | 3.0000" | 76.200 mm |
| Designation | WOHX 03T102EL | |
| Chip breaker (Ceratizit) / CBMD | -G12 | |
| Coating name / Grade (Ceratizit) / COATN | BK6425 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
