Description
Ceratizit Article Number: 6262652500
Ceratizit Material Number: 12547987
Ceratizit Komet Number (Unpacked): W00 34060.0221
Ceratizit Komet Number (Packed): W00340600221
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

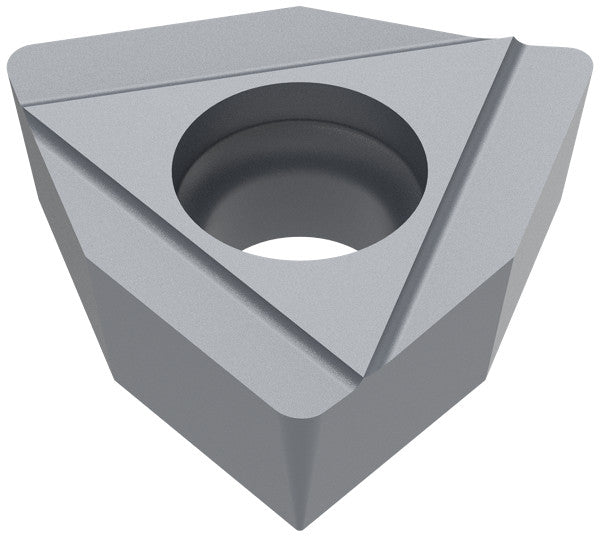

| Name | Ceratizit WOHX 060302EL-G06 K10 CoreLine HM indexable Insert 6262652500 | |
| EDP # | 0757321 | |
| Weight (1 pc.) | 0.1 oz | 3.4 g |
| designation | 060302EL | |
| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.2598" | 6.600 mm |
| Insert thickness / S | 0.1181" | 3.000 mm |
| Fixing hole diameter / D1 | 0.1488" | 3.780 mm |
| Inscribed circle diameter / IC | 0.3937" | 10.000 mm |
| Size | 6.0000" | 152.400 mm |
| Designation | WOHX 060302EL | |
| Chip breaker (Ceratizit) / CBMD | -G06 | |
| Coating name / Grade (Ceratizit) / COATN | K10 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
