Description
Ceratizit Article Number: 6262752000
Ceratizit Material Number: 12548018
Ceratizit Komet Number (Unpacked): W00 34500.0221
Ceratizit Komet Number (Packed): W00345000221
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

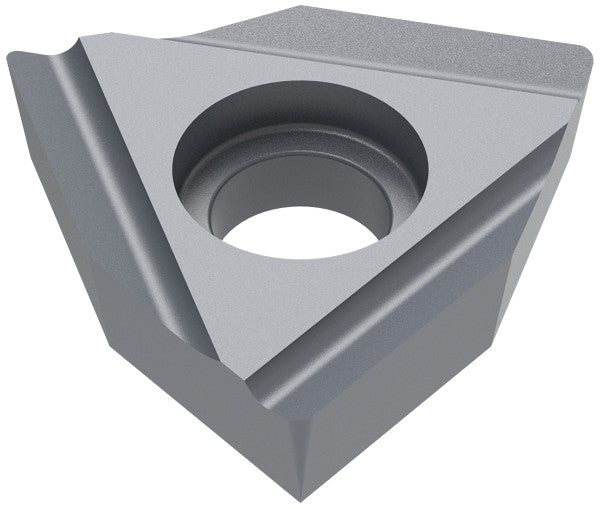

| Name | Ceratizit WOHX 060302FR-G20 K10 CoreLine HM indexable Insert 6262752000 | |
| EDP # | 0757339 | |
| Weight (1 pc.) | 0.2 oz | 4.5 g |
| designation | 060302FR | |

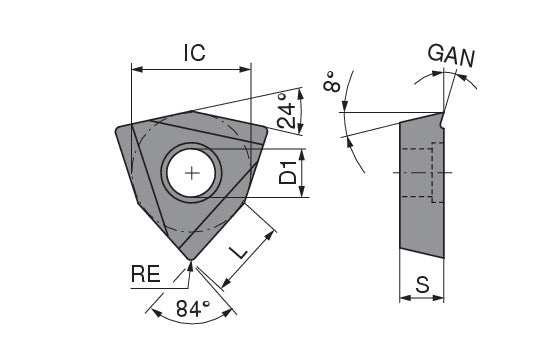

| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.2598" | 6.600 mm |
| Insert thickness / S | 0.1181" | 3.000 mm |
| Fixing hole diameter / D1 | 0.1488" | 3.780 mm |
| Inscribed circle diameter / IC | 0.3937" | 10.000 mm |
| Size | 6.0000" | 152.400 mm |
| Designation | WOHX 060302FR | |
| Chip breaker (Ceratizit) / CBMD | -G20 | |
| Coating name / Grade (Ceratizit) / COATN | K10 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
