Description
Ceratizit Article Number: 6262646402
Ceratizit Material Number: 12548054
Ceratizit Komet Number (Unpacked): W00 50060.0403
Ceratizit Komet Number (Packed): W00500600403
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

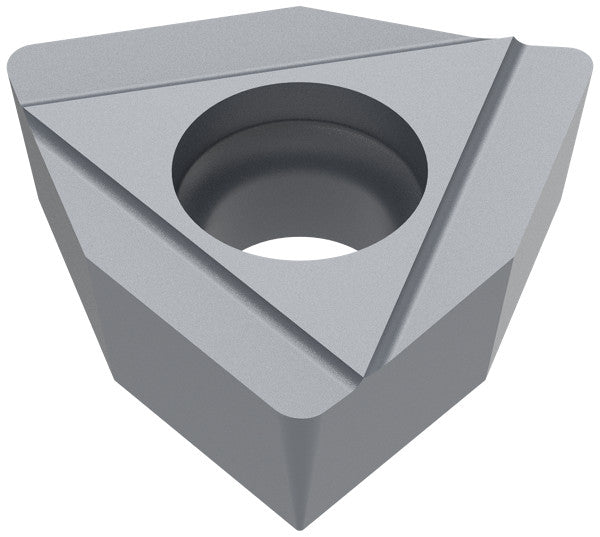

| Name | Ceratizit WOHX 10T304EL-G06 P25M CoreLine HM indexable Insert 6262646402 | |
| EDP # | 0757354 | |
| Weight (1 pc.) | 0.5 oz | 13.4 g |

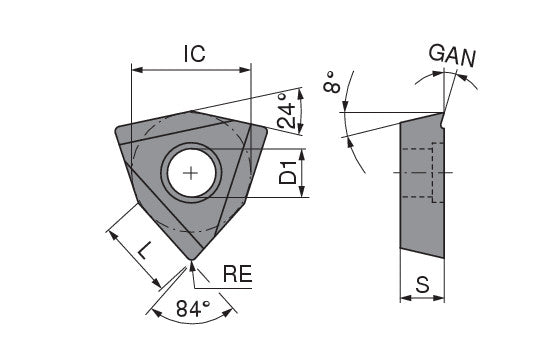

| designation | 10T304EL | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.3898" | 9.900 mm |
| Insert thickness / S | 0.1693" | 4.300 mm |
| Fixing hole diameter / D1 | 0.1850" | 4.700 mm |
| Inscribed circle diameter / IC | 0.5906" | 15.000 mm |
| Size | 10.0000" | 254.000 mm |
| Designation | WOHX 10T304EL | |
| Chip breaker (Ceratizit) / CBMD | -G06 | |
| Coating name / Grade (Ceratizit) / COATN | P25M | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
