Description
Ceratizit Article Number: 6260051300
Ceratizit Material Number: 12548079
Ceratizit Komet Number (Unpacked): W01 18120.0421
Ceratizit Komet Number (Packed): W01181200421
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

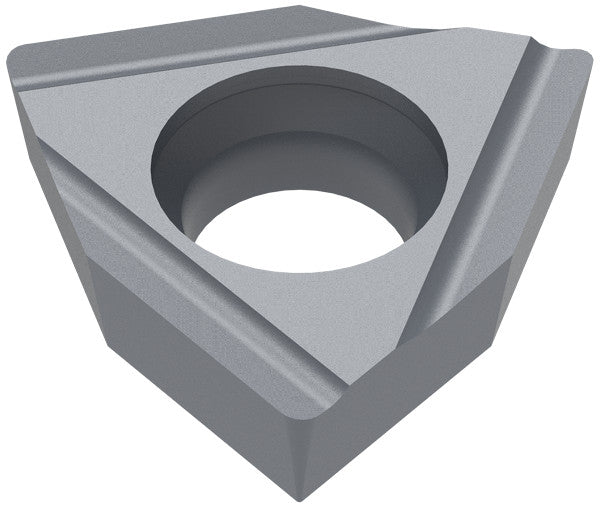

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit INSERT WOHX 040304FL-G12 K10 CoreLine HM indexable 6260051300 | |
| EDP # | 0757362 | |
| Weight (1 pc.) | 0.2 oz | 6.2 g |
| designation | 040304FL | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.1614" | 4.100 mm |
| Insert thickness / S | 0.1252" | 3.180 mm |
| Fixing hole diameter / D1 | 0.0984" | 2.500 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| Size | 4.0000" | 101.600 mm |
| Designation | WOHX 040304FL | |
| Chip breaker (Ceratizit) / CBMD | -G12 | |
| Coating name / Grade (Ceratizit) / COATN | K10 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
