Description
Ceratizit Article Number: 6262631000
Ceratizit Material Number: 12548083
Ceratizit Komet Number (Unpacked): W01 18360.048425
Ceratizit Komet Number (Packed): W0118360048425
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

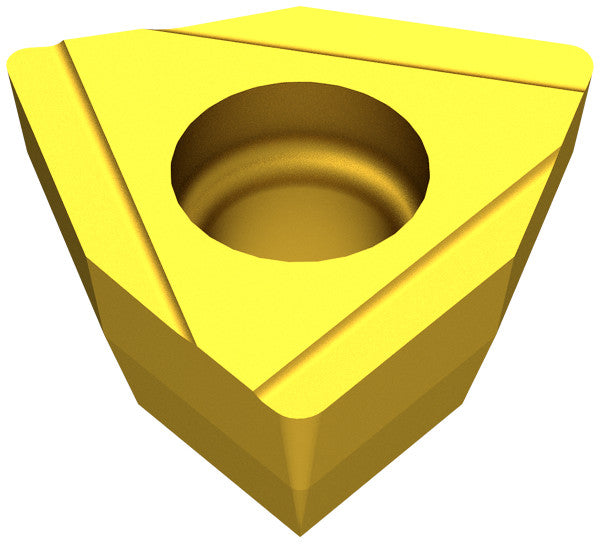

| Name | Ceratizit WOHX 040304ER-G06 BK8425 CoreLine HM indexable Insert 6262631000 | |
| EDP # | 0757364 | |
| Weight (1 pc.) | 0.04 oz | 1.2 g |
| designation | 040304ER | |

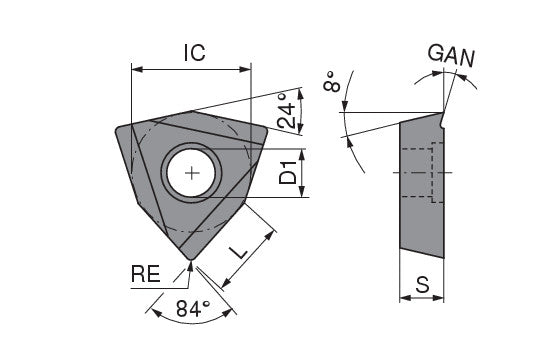

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.1614" | 4.100 mm |
| Insert thickness / S | 0.1252" | 3.180 mm |
| Fixing hole diameter / D1 | 0.0984" | 2.500 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| Size | 4.0000" | 101.600 mm |
| Designation | WOHX 040304ER | |
| Chip breaker (Ceratizit) / CBMD | -G06 | |
| Coating name / Grade (Ceratizit) / COATN | BK8425 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
