Description
Ceratizit Article Number: 6260052200
Ceratizit Material Number: 12548102
Ceratizit Komet Number (Unpacked): W01 24420.0221
Ceratizit Komet Number (Packed): W01244200221
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

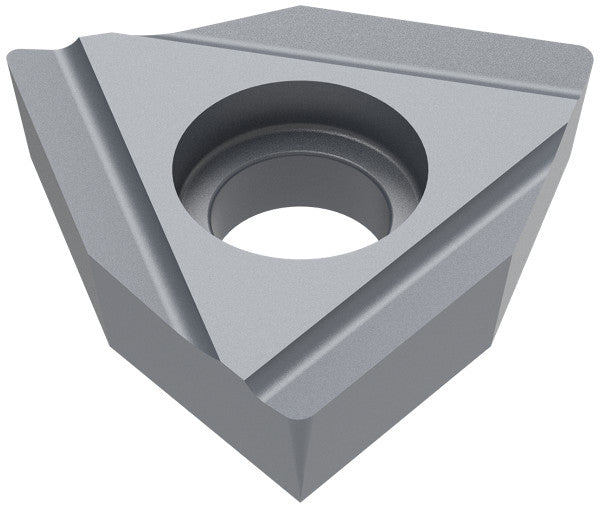

| Name | Ceratizit WOHX 05T302FR-G12 K10 CoreLine HM indexable Insert 6260052200 | |
| EDP # | 0757372 | |
| Weight (1 pc.) | 0.2 oz | 4.5 g |
| designation | 05T302FR | |

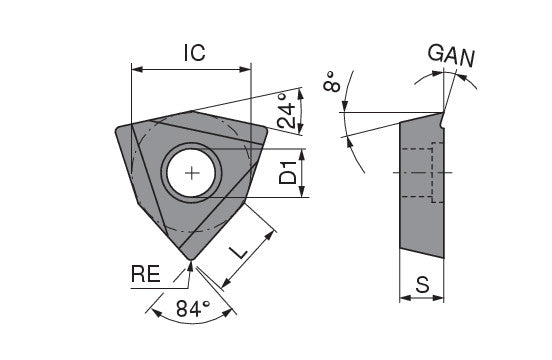

| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.2087" | 5.300 mm |
| Insert thickness / S | 0.1496" | 3.800 mm |
| Fixing hole diameter / D1 | 0.1122" | 2.850 mm |
| Inscribed circle diameter / IC | 0.3150" | 8.000 mm |
| Size | 5.0000" | 127.000 mm |
| Designation | WOHX 05T302FR | |
| Chip breaker (Ceratizit) / CBMD | -G12 | |
| Coating name / Grade (Ceratizit) / COATN | K10 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
