Description
Ceratizit Article Number: 6262990202
Ceratizit Material Number: 12548110
Ceratizit Komet Number (Unpacked): W01 24600.906115
Ceratizit Komet Number (Packed): W0124600906115
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

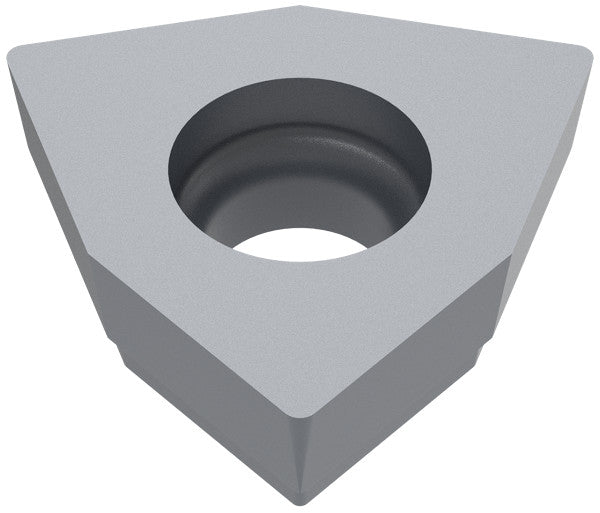

| Name | Ceratizit WOHX 05T3PN-EL BK6115 CoreLine HM indexable Insert 6262990202 | |
| EDP # | 0757375 | |
| Weight (1 pc.) | 0.1 oz | 3.8 g |
| designation | 05T3PNEL | |

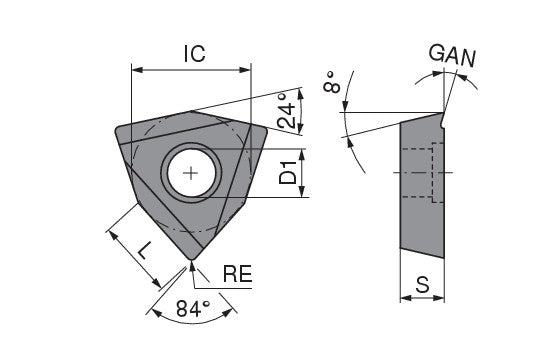

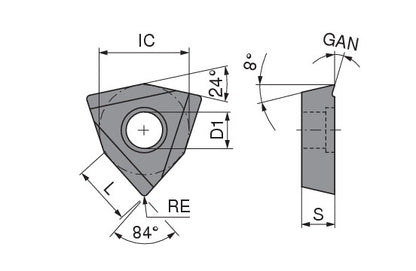

| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.2008" | 5.100 mm |
| Insert thickness / S | 0.1496" | 3.800 mm |
| Fixing hole diameter / D1 | 0.1122" | 2.850 mm |
| Inscribed circle diameter / IC | 0.3150" | 8.000 mm |
| Size | 5.0000" | 127.000 mm |
| Designation | WOHX 05T3PNEL | |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | BK6115 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
