Description
Ceratizit Article Number: 1082400000
Ceratizit Material Number: 12548111
Ceratizit Komet Number (Unpacked): W01 24940.0457
Ceratizit Komet Number (Packed): W01249400457
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

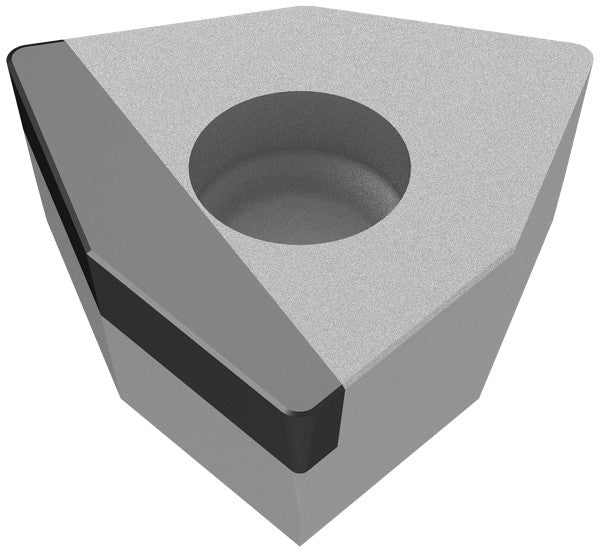

| Name | Ceratizit So.-WSP WOEX 05xx04SNN CTBS12U CoreLine PcBN indexable Insert 1082400000 | |
| EDP # | 0757376 | |
| Weight (1 pc.) | 0.2 oz | 6.0 g |

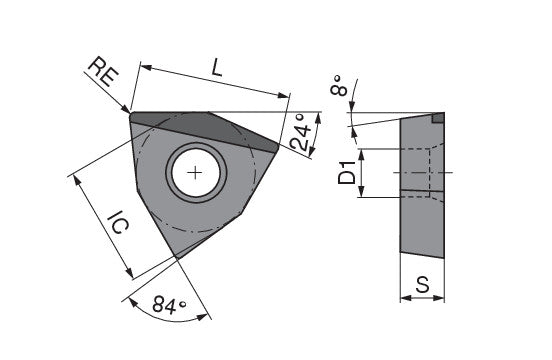

| Inscribed circle diameter / IC | 0.3150" | 8.000 mm |
| designation | 05T304SNN | |
| insert thickness | T3 | |
| Fixing hole diameter / D1 | 0.1122" | 2.850 mm |
| Insert thickness / S | 0.1496" | 3.800 mm |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.2087" | 5.300 mm |
| support chamfer angle / GB | 20 ° | |
| TCE (NOI) | A (1) | |
| Cutting edge effective length / LE | 0.3976" | 10.100 mm |
| Face land width / BN | 0.0039" | 0.100 mm |
| Size | 5.0000" | 127.000 mm |
| Coating name / Grade (Ceratizit) / COATN | CTBS12U | |
| Tipped cutting edge code / TCE | A | |
| Insert index count / NOI | 1.0000" | 25.400 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
