Description
Ceratizit Article Number: 6262883100
Ceratizit Material Number: 12548161
Ceratizit Komet Number (Unpacked): W01 42600.047615
Ceratizit Komet Number (Packed): W0142600047615
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

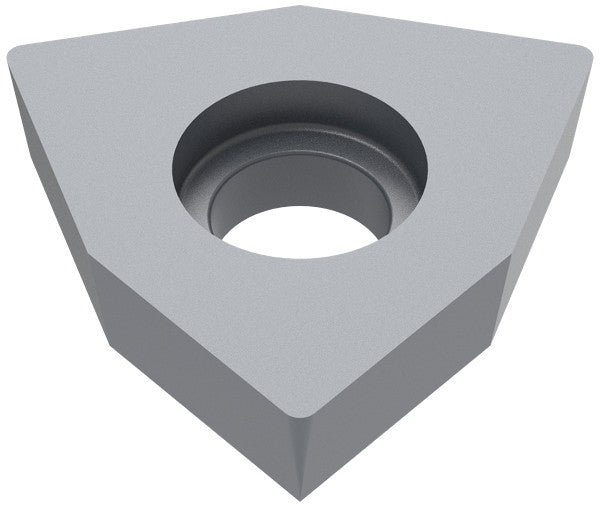

| Name | Ceratizit WOHX 080404EN BK7615 CoreLine - HM indexable Insert - 6262883100 | |
| EDP # | 0757400 | |
| Weight (1 pc.) | 0.3 oz | 8.5 g |
| designation | 080404EN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.3110" | 7.900 mm |
| Insert thickness / S | 0.1890" | 4.800 mm |
| Fixing hole diameter / D1 | 0.1929" | 4.900 mm |
| Inscribed circle diameter / IC | 0.4724" | 12.000 mm |
| Size | 8.0000" | 203.200 mm |
| Designation | WOHX 080404EN | |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | BK7615 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
