Description
Ceratizit Article Number: 6263093802
Ceratizit Material Number: 12548174
Ceratizit Komet Number (Unpacked): W01 50600.756115
Ceratizit Komet Number (Packed): W0150600756115
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

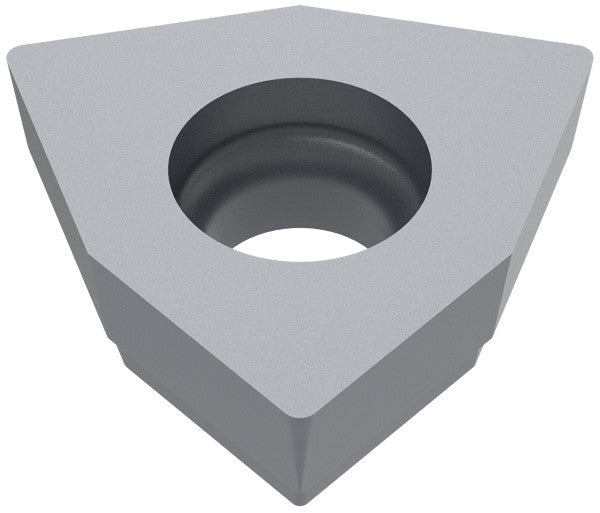

| Name | Ceratizit Insert W01 50600.756115; CoreLine - HM indexable - WOHX 6263093802 | |
| EDP # | 0757409 | |
| Weight (1 pc.) | 0.2 oz | 6.0 g |
| designation | 1005ENEL | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.3504" | 8.900 mm |
| Insert thickness / S | 0.2087" | 5.300 mm |
| Fixing hole diameter / D1 | 0.1929" | 4.900 mm |
| Inscribed circle diameter / IC | 0.5906" | 15.000 mm |
| Size | 10.0000" | 254.000 mm |
| Designation | WOHX 1005ENEL | |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | BK6115 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
