Description
Ceratizit Article Number: 6260036700
Ceratizit Material Number: 12548177
Ceratizit Komet Number (Unpacked): W01 58120.068425
Ceratizit Komet Number (Packed): W0158120068425
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

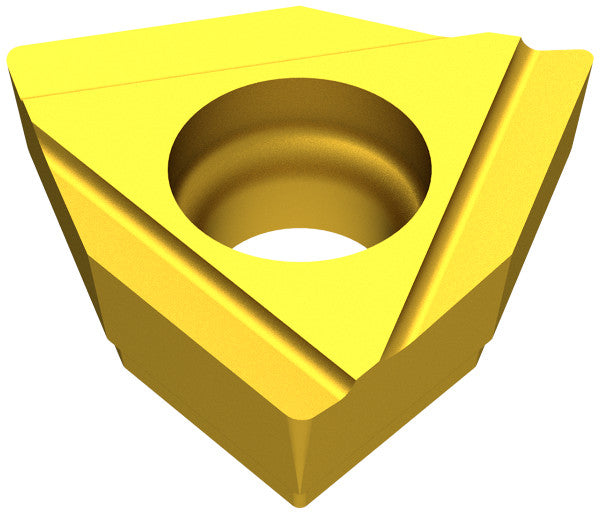

| Name | Ceratizit WOHX 120606EL-G12 BK8425 CoreLine HM indexable Insert 6260036700 | |
| EDP # | 0757412 | |
| Weight (1 pc.) | 1.0 oz | 18.0 g |

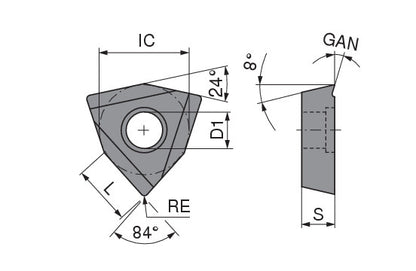

| designation | 120606EL | |
| Corner radius / RE | 0.0236" | 0.600 mm |
| Cutting edge length / L | 0.4567" | 11.600 mm |
| Insert thickness / S | 0.2362" | 6.000 mm |
| Fixing hole diameter / D1 | 0.2283" | 5.800 mm |
| Inscribed circle diameter / IC | 0.6929" | 17.600 mm |
| Size | 12.0000" | 304.800 mm |
| Designation | WOHX 120606EL | |
| Chip breaker (Ceratizit) / CBMD | -G12 | |
| Coating name / Grade (Ceratizit) / COATN | BK8425 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
