Description
Ceratizit Article Number: 6261412802
Ceratizit Material Number: 12548196
Ceratizit Komet Number (Unpacked): W04 50480.046425
Ceratizit Komet Number (Packed): W0450480046425
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

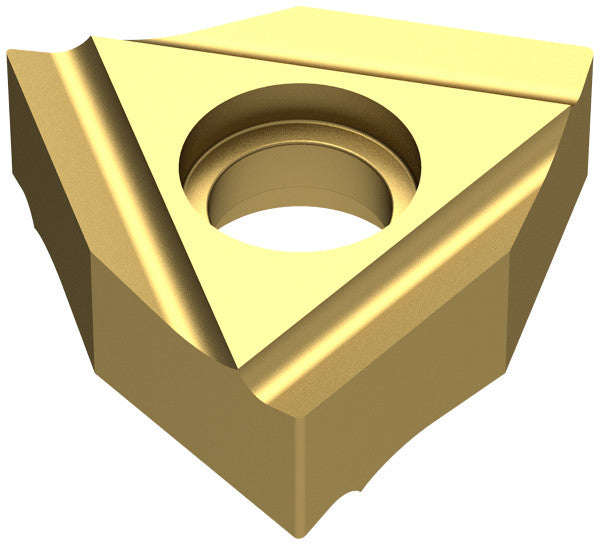

| Name | Ceratizit WNHX 100404ER-G18 BK6425 CoreLine HM indexable Insert 6261412802 | |
| EDP # | 0757425 | |
| Weight (1 pc.) | 1.0 oz | 15.8 g |
| designation | 100404ER | |

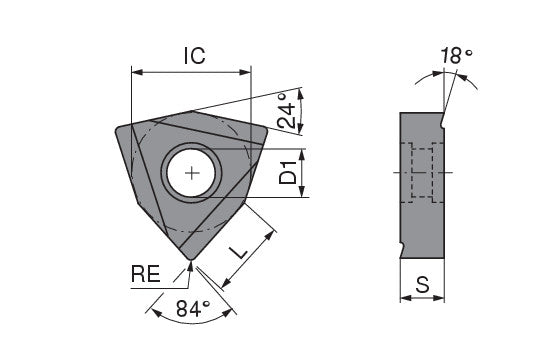

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.3740" | 9.500 mm |
| Insert thickness / S | 0.1969" | 5.000 mm |
| Fixing hole diameter / D1 | 0.1850" | 4.700 mm |
| Inscribed circle diameter / IC | 0.5906" | 15.000 mm |
| Size | 10.0000" | 254.000 mm |
| Designation | WNHX 100404ER | |
| Cutting edge angle major / KRINS | 24 ° | |
| Chip breaker (Ceratizit) / CBMD | -G18 | |
| Coating name / Grade (Ceratizit) / COATN | BK6425 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
