Description
Ceratizit Article Number: 1082100501
Ceratizit Material Number: 12548229
Ceratizit Komet Number (Unpacked): W28 24010.047615
Ceratizit Komet Number (Packed): W2824010047615
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

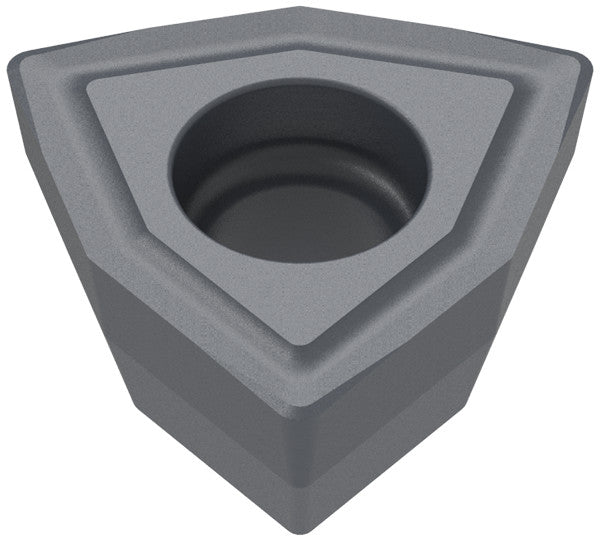

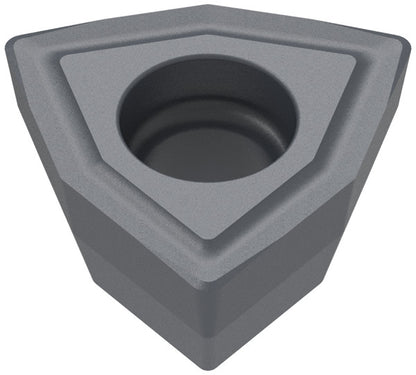

| Name | Ceratizit WOEX 050304-01 BK7615 CoreLine Carbide Drilling indexable Insert 1082100501 | |
| EDP # | 0757429 | |
| Weight (1 pc.) | 0.1 oz | 1.8 g |
| Inscribed circle diameter / IC | 0.3150" | 8.000 mm |
| designation | 50304.0000" | 1277721.600 mm |
| insert thickness | 3.0000" | 76.200 mm |
| Fixing hole diameter / D1 | 0.1043" | 2.650 mm |
| Insert thickness / S | 0.1181" | 3.000 mm |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.2067" | 5.250 mm |
| Size | 5.0000" | 127.000 mm |
| Coating name / Grade (Ceratizit) / COATN | BK7615 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
