Description
Ceratizit Article Number: 1082120601
Ceratizit Material Number: 12548377
Ceratizit Komet Number (Unpacked): W29 34010.0462
Ceratizit Komet Number (Packed): W29340100462
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit WOEX 06T304-01 BK62 1082120601 | |
| EDP # | 0757500 | |
| Weight (1 pc.) | 0.1 oz | 3.9 g |
| Product-Carbon-Footprint | C | |

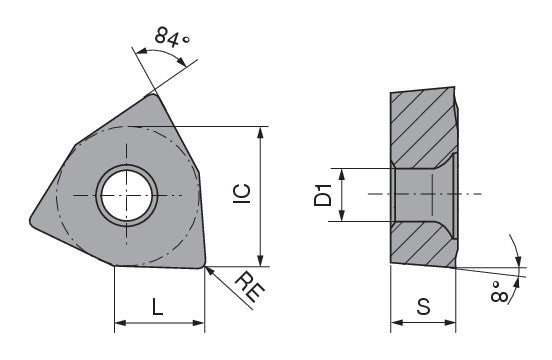

| Inscribed circle diameter / IC | 0.3937" | 10.000 mm |
| designation | 06T304 | |
| insert thickness | T3 | |
| Fixing hole diameter / D1 | 0.1594" | 4.050 mm |
| Insert thickness / S | 0.1496" | 3.800 mm |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Coating name / Grade (Ceratizit) / COATN | BK62 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
