Description
Ceratizit Article Number: 1082127802
Ceratizit Material Number: 12548436
Ceratizit Komet Number (Unpacked): W29 42020.086440
Ceratizit Komet Number (Packed): W2942020086440
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

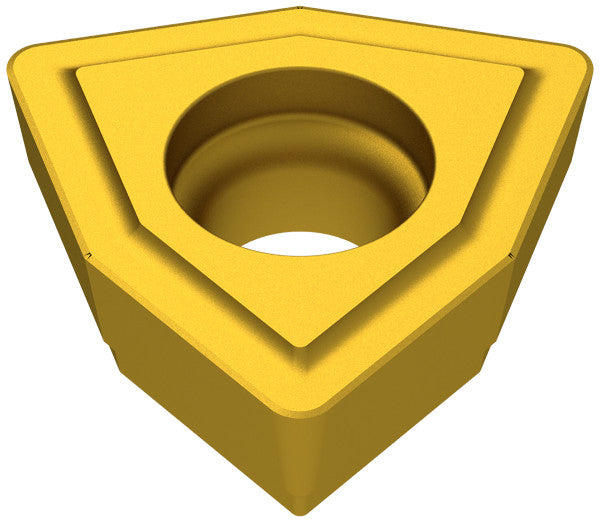

| Name | Ceratizit WOEX 080408-02 BK6440 CoreLine HM indexable Insert 1082127802 | |
| EDP # | 0757547 | |
| Weight (1 pc.) | 0.3 oz | 7.8 g |

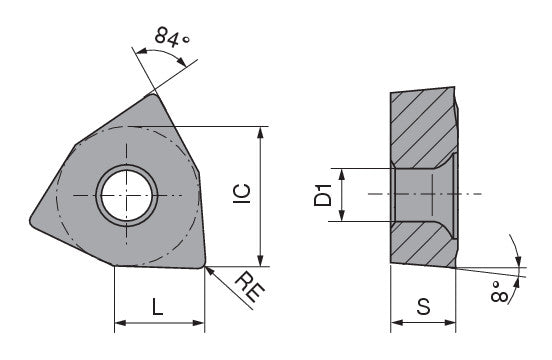

| Inscribed circle diameter / IC | 0.4724" | 12.000 mm |
| designation | 80408.0000" | 2042363.200 mm |
| insert thickness | 4.0000" | 101.600 mm |
| Fixing hole diameter / D1 | 0.1929" | 4.900 mm |
| Insert thickness / S | 0.1890" | 4.800 mm |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.3110" | 7.900 mm |
| Size | 8.0000" | 203.200 mm |
| Coating name / Grade (Ceratizit) / COATN | BK6440 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
