Description
Ceratizit Article Number: 1082161001
Ceratizit Material Number: 12548464
Ceratizit Komet Number (Unpacked): W29 50010.046425
Ceratizit Komet Number (Packed): W2950010046425
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

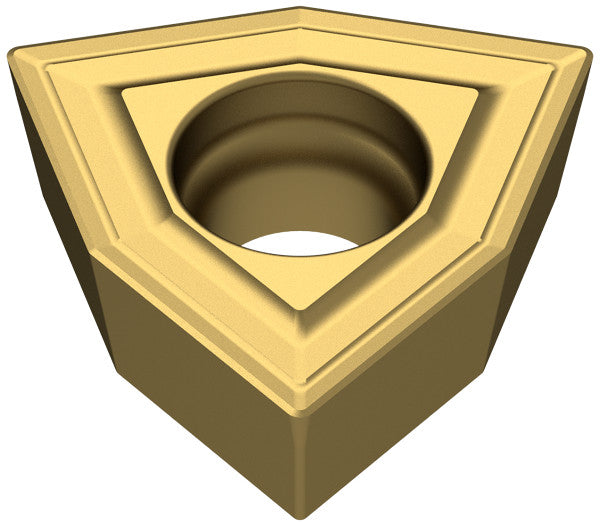

| Name | Ceratizit WOEX 100504-01 BK6425 CoreLine Carbide Drilling indexable Insert 1082161001 | |
| EDP # | 0757571 | |
| Weight (1 pc.) | 0.5 oz | 13.4 g |
| Inscribed circle diameter / IC | 0.5906" | 15.000 mm |
| designation | 100504.0000" | 2552801.600 mm |
| insert thickness | 5.0000" | 127.000 mm |
| Fixing hole diameter / D1 | 0.1929" | 4.900 mm |
| Insert thickness / S | 0.2087" | 5.300 mm |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.3898" | 9.900 mm |
| Size | 10.0000" | 254.000 mm |
| Coating name / Grade (Ceratizit) / COATN | BK6425 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
