Description
Ceratizit Article Number: 1082108001
Ceratizit Material Number: 12548476
Ceratizit Komet Number (Unpacked): W29 50010.087615
Ceratizit Komet Number (Packed): W2950010087615
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

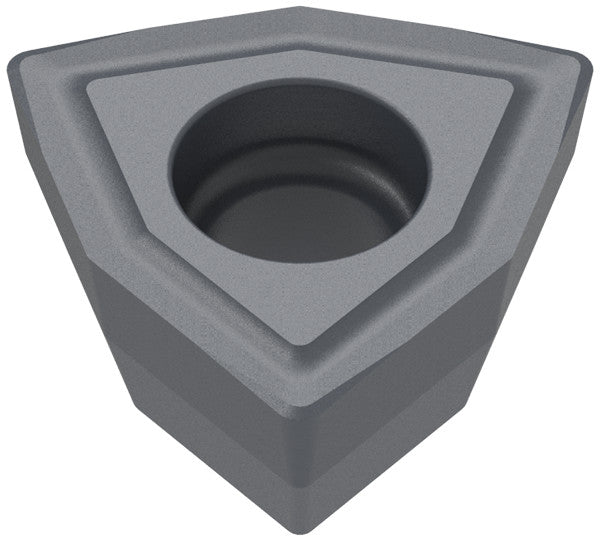

| Name | Ceratizit WOEX 100508-01 BK7615 CoreLine Carbide Drilling indexable Insert 1082108001 | |
| EDP # | 0757581 | |
| Weight (1 pc.) | 1.0 oz | 16.9 g |
| Product-Carbon-Footprint | C | |
| Inscribed circle diameter / IC | 0.5906" | 15.000 mm |
| designation | 100508.0000" | 2552903.200 mm |
| insert thickness | 5.0000" | 127.000 mm |
| Fixing hole diameter / D1 | 0.1929" | 4.900 mm |
| Insert thickness / S | 0.2087" | 5.300 mm |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.3898" | 9.900 mm |
| Size | 10.0000" | 254.000 mm |
| Coating name / Grade (Ceratizit) / COATN | BK7615 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
