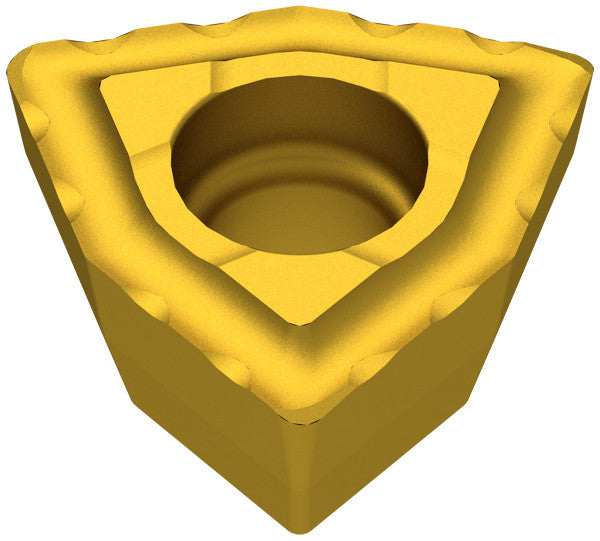

Ceratizit INSERT WOEX120608-13 BK8425 CoreLine Carbide Drilling indexable 1082138213 (0757612)
Ceratizit INSERT WOEX120608-13 BK8425 CoreLine Carbide Drilling indexable 1082138213 (0757612)
Couldn't load pickup availability
Ceratizit Article Number: 1082138213
Ceratizit Material Number: 12548517
Ceratizit Komet Number (Unpacked): W29 58130.088425
Ceratizit Komet Number (Packed): W2958130088425
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit INSERT WOEX120608-13 BK8425 CoreLine Carbide Drilling indexable 1082138213 | |
| EDP # | 0757612 | |
| Weight (1 pc.) | 1.0 oz | 20.0 g |
| Inscribed circle diameter / IC | 0.6929" | 17.600 mm |
| designation | 120608.0000" | 3063443.200 mm |
| insert thickness | 6.0000" | 152.400 mm |
| Fixing hole diameter / D1 | 0.2343" | 5.950 mm |
| Insert thickness / S | 0.2362" | 6.000 mm |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.4567" | 11.600 mm |
| Size | 12.0000" | 304.800 mm |
| Coating name / Grade (Ceratizit) / COATN | BK8425 | |
| Product-Carbon-Footprint | E | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
