Description
Ceratizit Article Number: 6261001402
Ceratizit Material Number: 12548985
Ceratizit Komet Number (Unpacked): W32 13150.0450
Ceratizit Komet Number (Packed): W32131500450
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

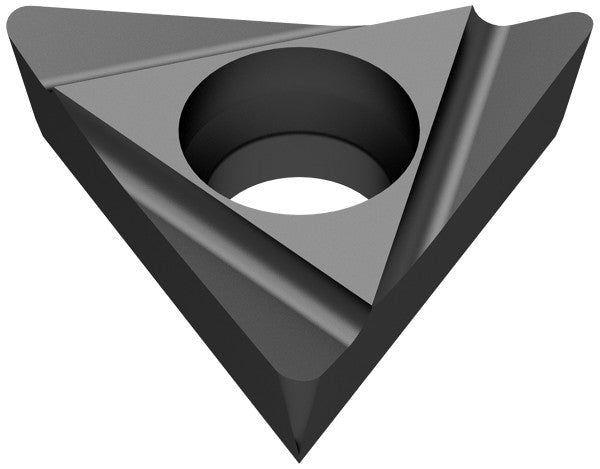

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit INSERT TPHX090204FL-P15BK50 CoreLine HM indexable 6261001402 | |
| EDP # | 0757617 | |
| Weight (1 pc.) | 0.1 oz | 2.3 g |
| designation | 090204FL | |

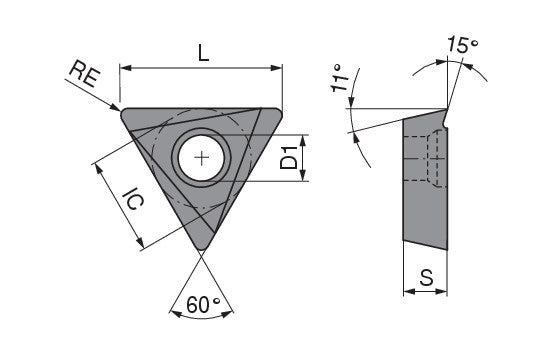

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.3559" | 9.040 mm |
| Insert thickness / S | 0.0630" | 1.600 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2189" | 5.560 mm |
| Cutting edge effective length / LE | 0.1772" | 4.500 mm |
| Size | 9.0000" | 228.600 mm |
| Designation | TPHX 090204FL | |
| Chip breaker (Ceratizit) / CBMD | -P15 | |
| Coating name / Grade (Ceratizit) / COATN | BK50 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
