Description
Ceratizit Article Number: 6261052600
Ceratizit Material Number: 12548995
Ceratizit Komet Number (Unpacked): W32 18150.0421
Ceratizit Komet Number (Packed): W32181500421
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

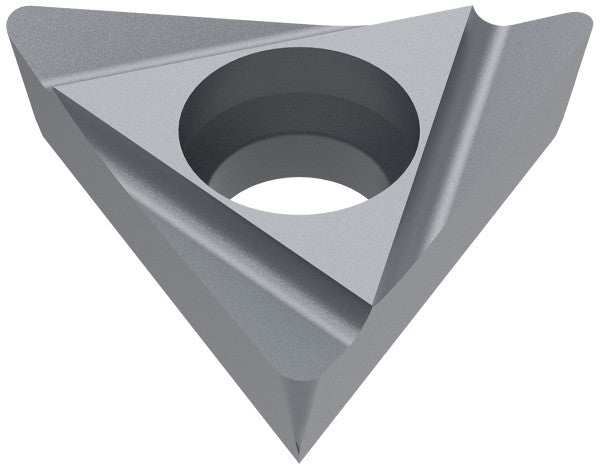

| Name | Ceratizit INSERT TPHX110204FL-P15K10 CoreLine HM indexable 6261052600 | |
| EDP # | 0757621 | |
| Weight (1 pc.) | 0.1 oz | 1.8 g |
| designation | 110204FL | |

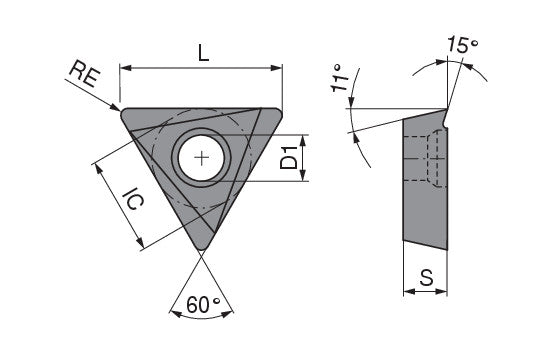

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.4098" | 10.410 mm |
| Insert thickness / S | 0.1252" | 3.180 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| Cutting edge effective length / LE | 0.1811" | 4.600 mm |
| Size | 11.0000" | 279.400 mm |
| Designation | TPHX 110204FL | |
| Chip breaker (Ceratizit) / CBMD | -P15 | |
| Coating name / Grade (Ceratizit) / COATN | K10 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
