Description
Ceratizit Article Number: 6260991401
Ceratizit Material Number: 12549002
Ceratizit Komet Number (Unpacked): W32 18600.0450
Ceratizit Komet Number (Packed): W32186000450
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

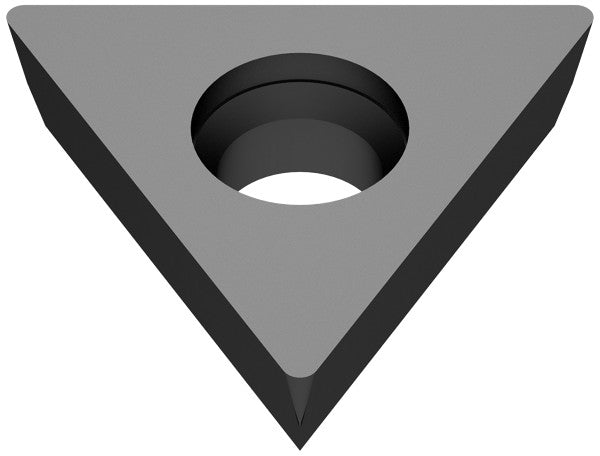

| Name | Ceratizit INSERT TPHB110204FN-PBK50 CoreLine HM indexable 6260991401 | |
| EDP # | 0757622 | |
| Weight (1 pc.) | 0.1 oz | 2.7 g |
| designation | 110204FN | |

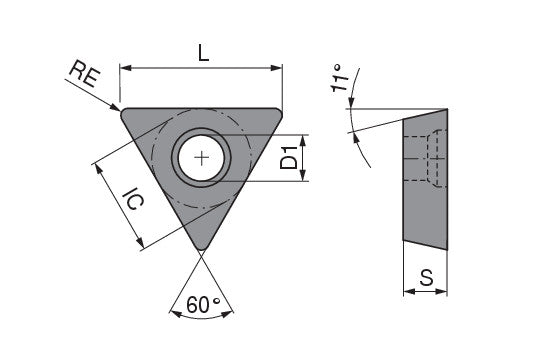

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.4098" | 10.410 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| Size | 11.0000" | 279.400 mm |
| Designation | TPHB 110204FN | |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | PBK50 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
