Description
Ceratizit Article Number: 6260984001
Ceratizit Material Number: 12549016
Ceratizit Komet Number (Unpacked): W32 32600.0821
Ceratizit Komet Number (Packed): W32326000821
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

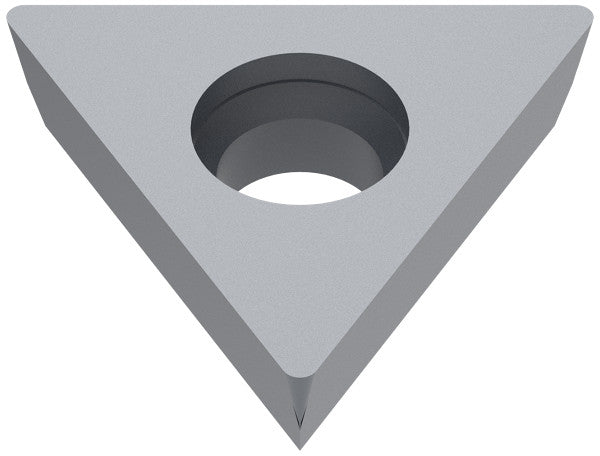

| Name | Ceratizit INSERT TPHB160308FN-PK10 CoreLine HM indexable 6260984001 | |
| EDP # | 0757628 | |
| Weight (1 pc.) | 0.2 oz | 5.0 g |
| designation | 160308FN | |

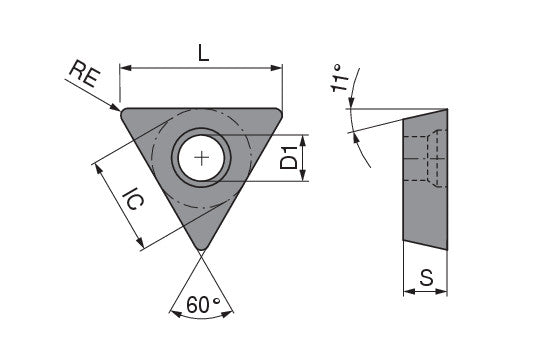

| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.6031" | 15.320 mm |
| Insert thickness / S | 0.1252" | 3.180 mm |
| Fixing hole diameter / D1 | 0.1693" | 4.300 mm |
| Inscribed circle diameter / IC | 0.3748" | 9.520 mm |
| Size | 16.0000" | 406.400 mm |
| Designation | TPHB 160308FN | |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | PK10 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
