Description
Ceratizit Article Number: 6260985001
Ceratizit Material Number: 12549018
Ceratizit Komet Number (Unpacked): W32 44600.0421
Ceratizit Komet Number (Packed): W32446000421
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

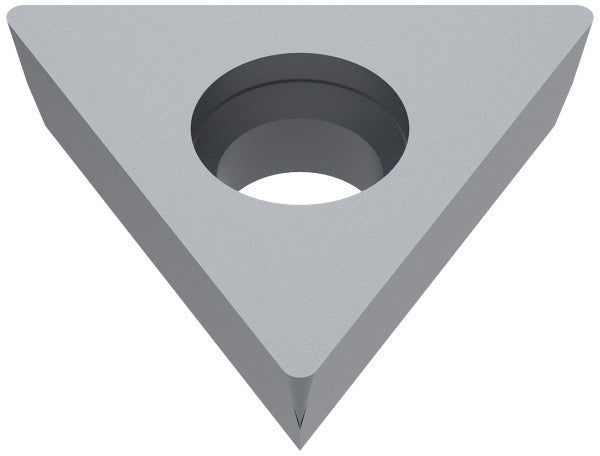

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

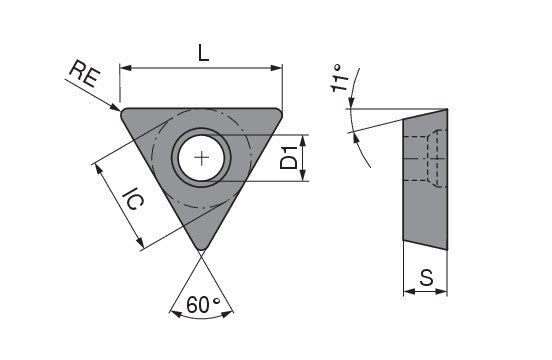

| Properties | ||
|---|---|---|
| Name | Ceratizit INSERT TPHB220404FN-PK10 6260985001 | |
| EDP # | 0757629 | |
| Weight (1 pc.) | 0.4 oz | 12.0 g |
| designation | 220404FN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.8429" | 21.410 mm |
| Insert thickness / S | 0.1693" | 4.300 mm |
| Fixing hole diameter / D1 | 0.2047" | 5.200 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| Chip breaker (Ceratizit) / CBMD | > | |
| Coating name / Grade (Ceratizit) / COATN | PK10 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
