Description
Ceratizit Article Number: 6260171401
Ceratizit Material Number: 12549035
Ceratizit Komet Number (Unpacked): W57 26120.047710
Ceratizit Komet Number (Packed): W5726120047710
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

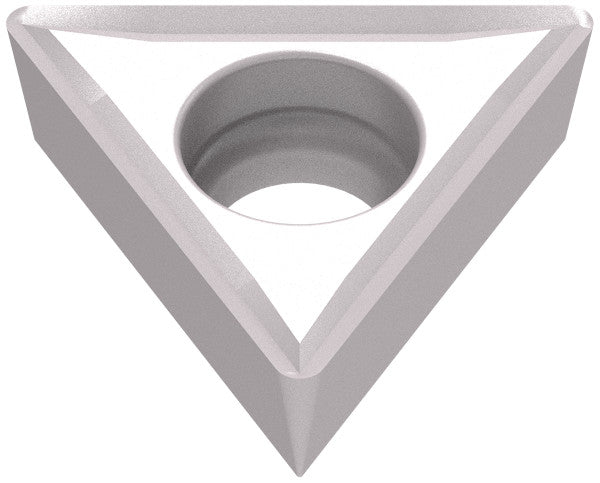

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit TOGX 140304FN-12 BK7710 6260171401 | |
| EDP # | 0757639 | |
| Weight (1 pc.) | 0.1 oz | 2.7 g |
| designation | 140304FN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.5362" | 13.620 mm |
| Insert thickness / S | 0.1181" | 3.000 mm |
| Fixing hole diameter / D1 | 0.1496" | 3.800 mm |
| Inscribed circle diameter / IC | 0.3228" | 8.200 mm |
| Chip breaker (Ceratizit) / CBMD | -12 | |
| Coating name / Grade (Ceratizit) / COATN | BK7710 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
